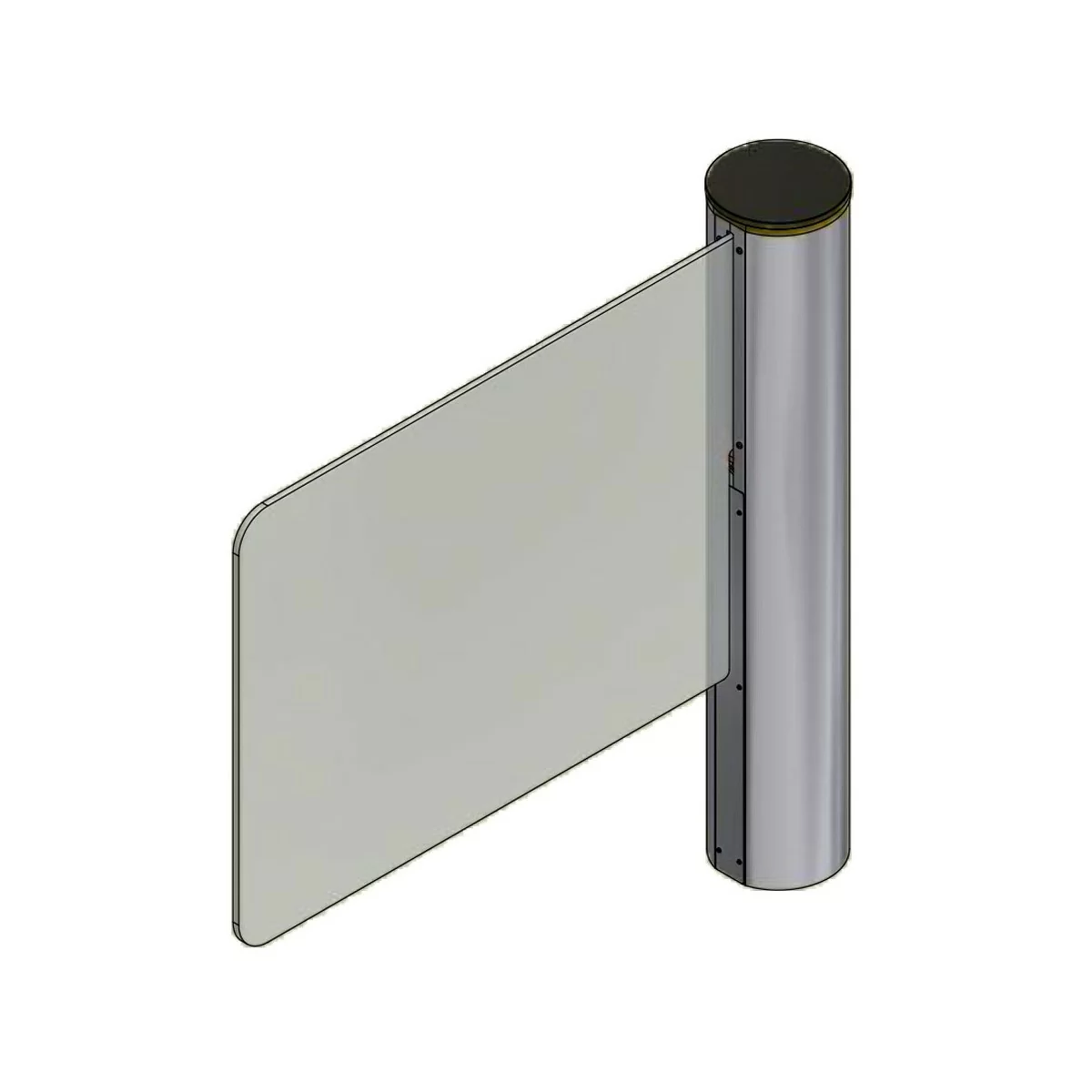

Motorised Swing Turnstile

iAccess MX-PASS

Prezzo: €0.00

SKU: TOR06MLX2

In stock

Spedizione: Corriere Espresso - 24/48 h.
Ordina entro le 15:00 e spediamo in giornata!

What is the iAccess MX-PASS Turnstile?

The MX-PASS swing turnstile in steel and plexiglass, integrated with iAccess Access Control systems.

The swing turnstile is particularly suitable for controlling the flow of people entering and exiting, making passage easier and helping to prevent queues.

Request Information

The turnstile is equipped with a dedicated anti-panic device that allows unlocking and therefore free passage in case of emergency.

Installing and configuring the MX-PASS Turnstile

Installing and configuring the MX-PASS Turnstile is simple and fast. By following the instruction manual, you can set the turnstile with the following functions:

Gate release in an ANTI-CLOCKWISE direction
Gate release in a CLOCKWISE direction
EMERGENCY release

Request Information

Where can the MX-PASS Turnstile be installed?

The MX-PASS turnstile is the ideal solution for controlling entrances and exits in:

Swimming pools
Sports centres
Gyms
Libraries
Amusement parks
Water parks
Events in general

Essential specifications

Power supply: 220V- 50Hz single-phase - 24 Vdc - Power 30W.
Consumption: 30W
Passage locking
Movement control: When the cycle starts in one direction, the reverse direction is locked
Installation: Simple and fast
Operating temperature: from -20° to +60°C
Indicators: 1 light indicator in both directions
Dimensions: Column diameter 230mm x 990H
Gate width: 800 mm. Ideal for disabled access
Weight: 40 kg.
Protection rating: IP44

Standard equipment

MX-PASS Turnstile

Power Supply 220 V: 24V DC +20%
Weight: 1 indicatore luminoso su entrambe le direzioni
Dimensions: 30W
Dimensions: Semplice e veloce, grazie allo speciale piedistallo
Temperatura di funzionamento: Larghezza Cancelletto 800mm. Ottimale per passaggio disabili
Degree of protection: Quando il ciclo inizia in una direzione, quella inversa è bloccata
Consumi: IP44
Blocco dei passaggi: 66 kg.
Controllo Movimento: 230x990x1030mm.
Installazione: da -20° a +70°C
Indicatori: Si
