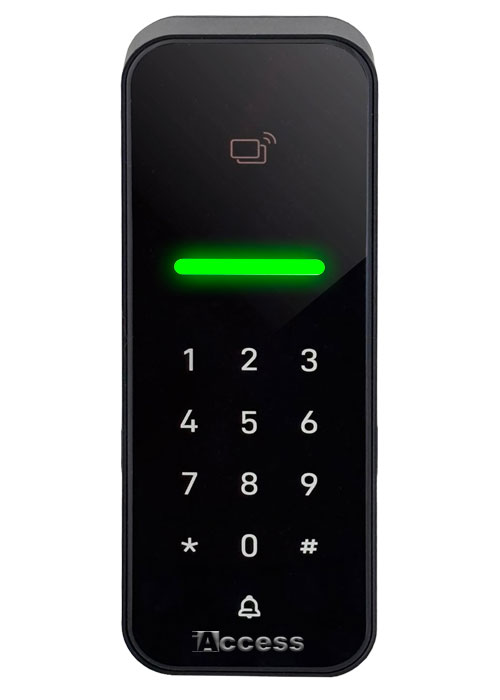

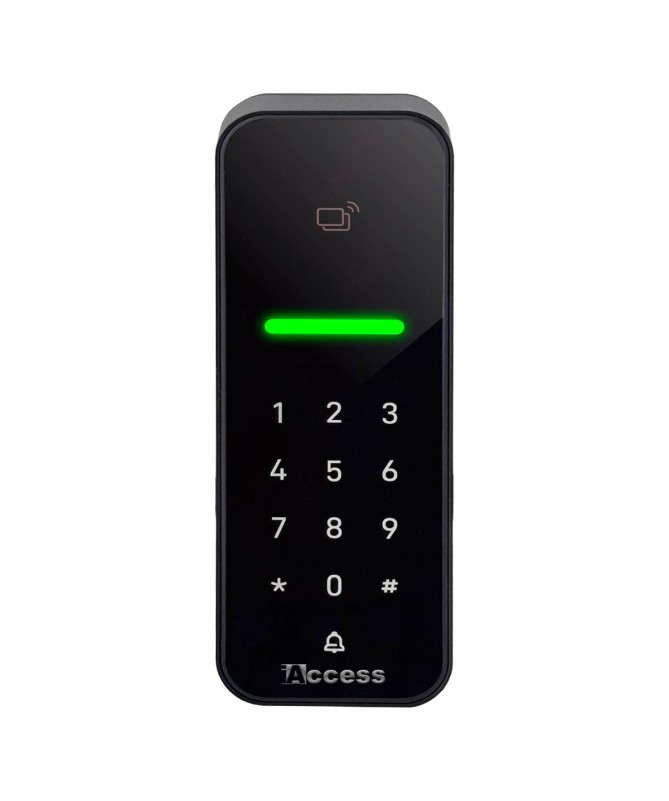

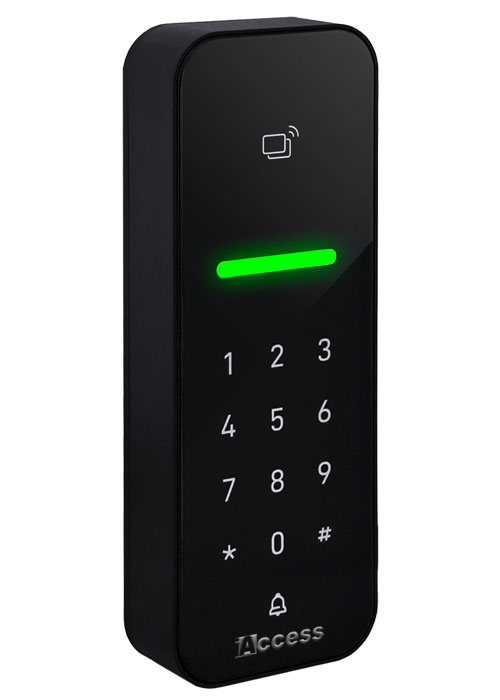

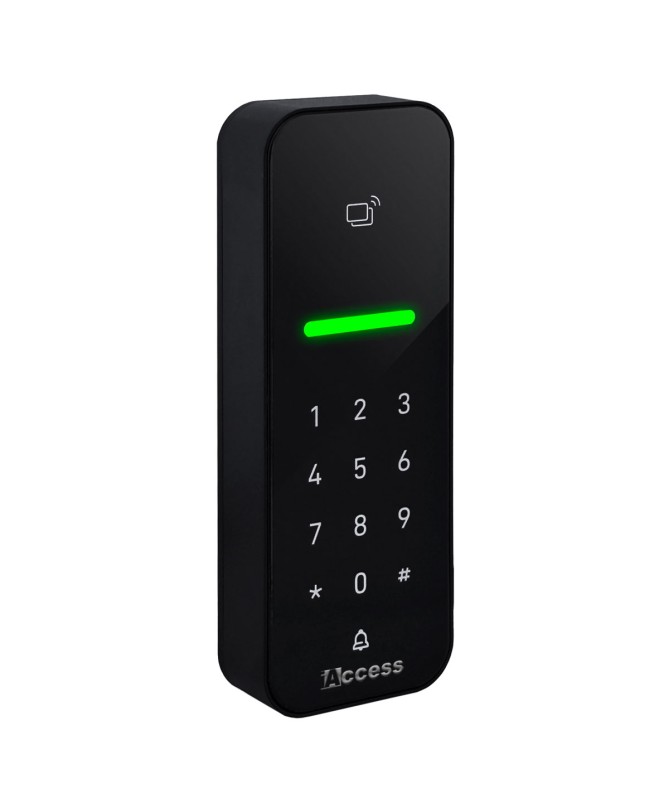

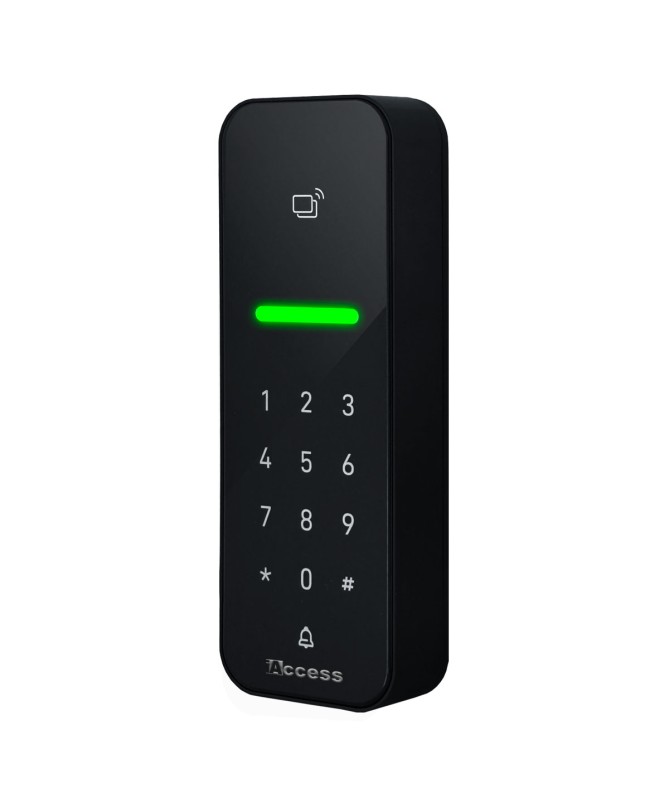

Access Control Card Reader and Keypad

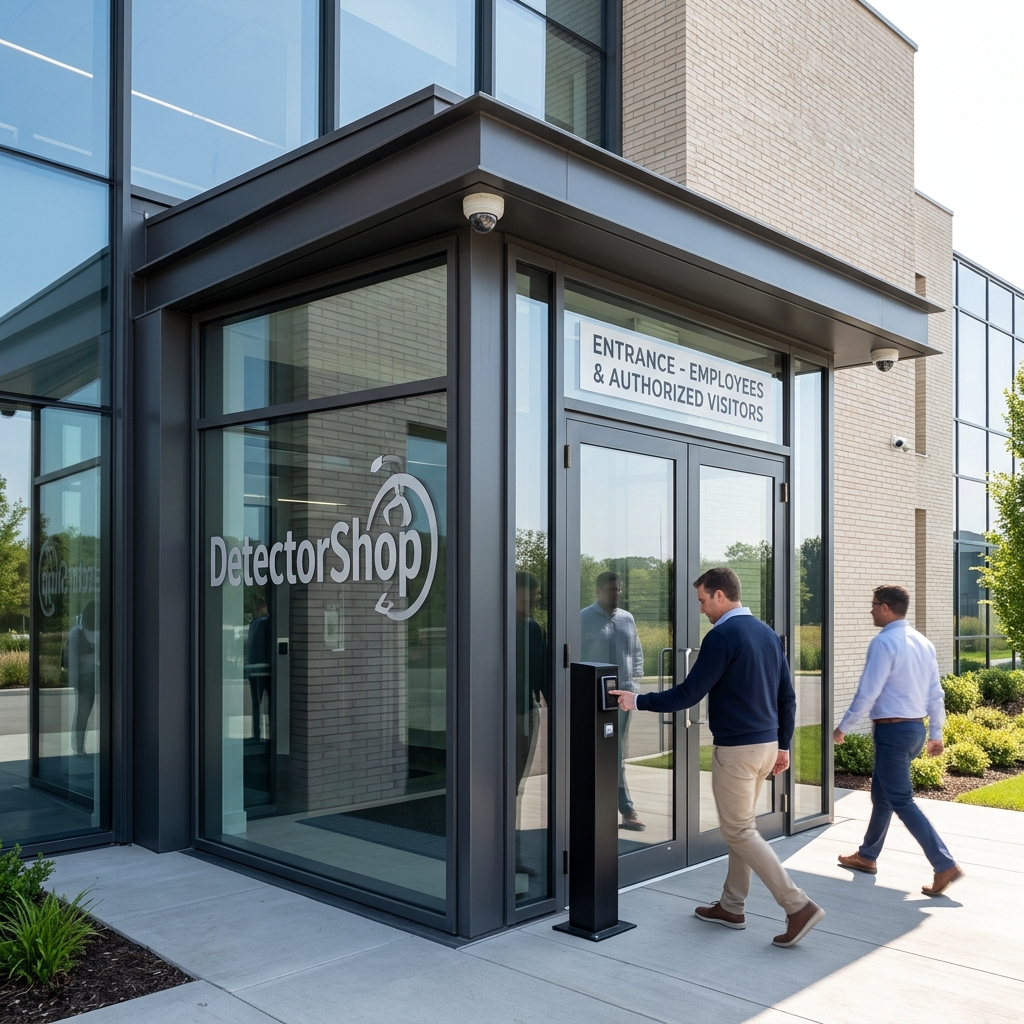

IA-L1 as access control for companies

The iAccess IA-L1 access control device is designed to be installed at company entrances or to protect company departments.

Thanks to the Time Studio^® software provided, it is possible to manage employee access, for example by setting specific permissions for each worker and deciding who can access certain areas; with just a few clicks, it is also possible to monitor every entry and access time of staff.

Why is iAccess IA-L1 suitable for private properties?

iAccess IA-L1 can be installed at the entrances of:

• private properties
• gates
• main doors
• garages
• storage facilities.

It effectively controls who can access the premises, reserving entry exclusively to authorized users. A modern solution that simplifies access management and permanently replaces traditional keys.

What can you do with Time Studio^® Software?

The included Time Studio^® software allows you to:

• quickly obtain a list of people present
• obtain reports on door openings (access to different departments) filterable down to the individual employee (useful in structured companies with many departments)

Essential Specifications iAccess IA-L1

• RFID 125 KHz card or key fob reader.
• RFID Mifare 13.56 MHz card or key fob reader.
• Numeric code reader

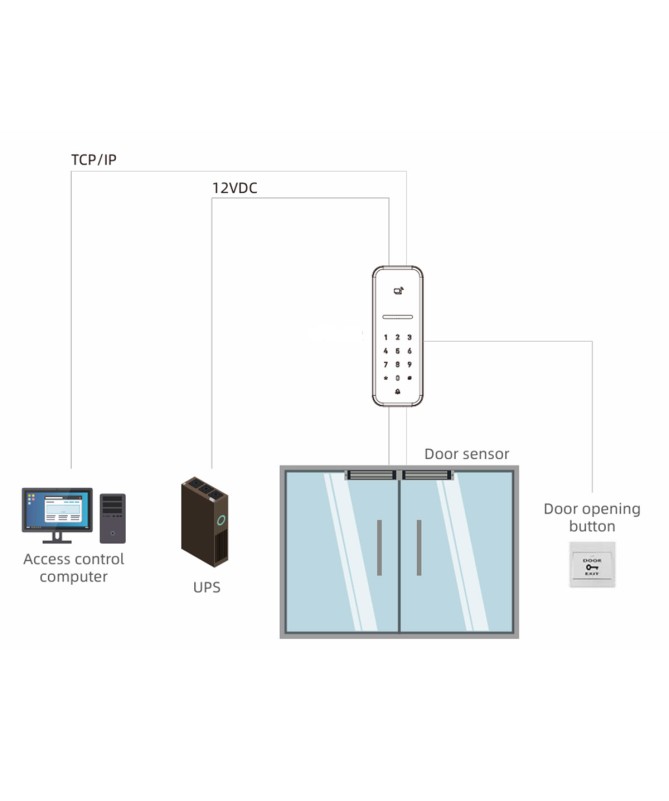

• Serial Communication: 1 RS 485 channel
• LAN network card
• 1 Door-opening relay
• 1 Wiegand 26/34/50/66 output, 1 Wiegand input
• 3 Input signals
• 1 Output signal
• 1 Reset button
• Tamper control
• Stores up to 30,000 cards
• Memorizes up to 200,000 passages

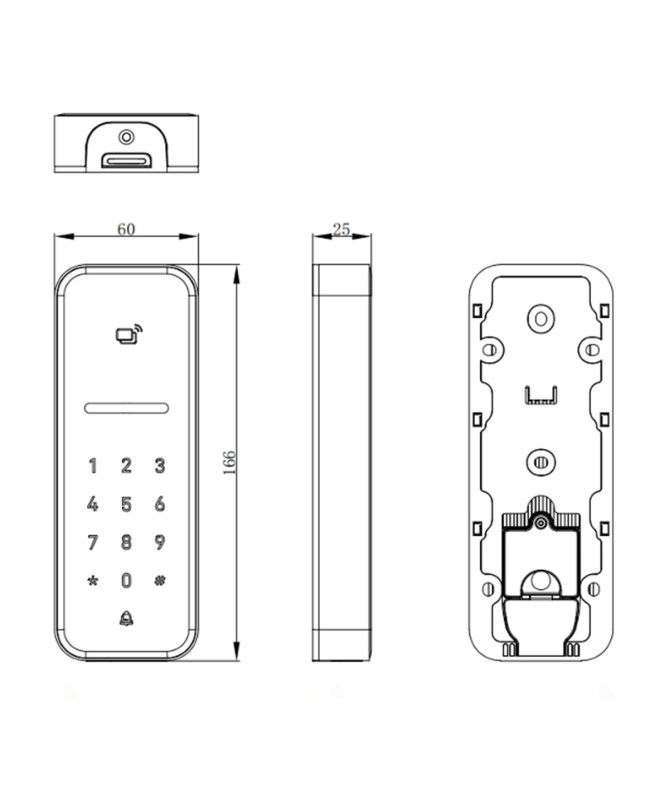

• Dimensions: 60x188x25 mm
• Temperature: from -20 to 60°C
• Humidity: 10% - 90%
• Protection rating: IP65
• Power consumption: Max. 1.5 W
• Power supply: 12Vdc 2A
• Wall installation
• Management Software: Time Studio® included (Windows PC)
