IP66 RFID and Biometric Access Control

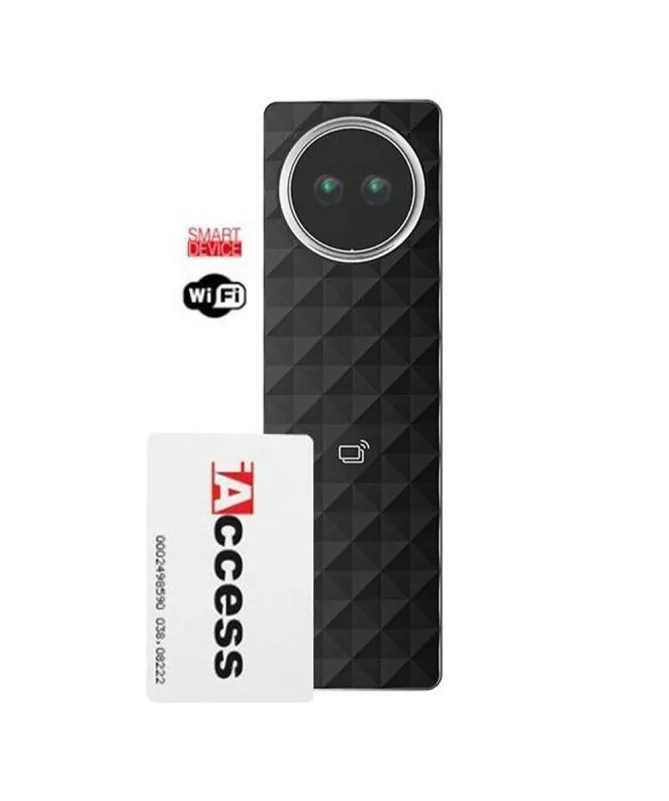

What is the iAccess IA-E1?

The iAccess IA-E1 is a professional access control system featuring a compact, vandal-resistant design; it is suitable for any organization and can be installed very quickly. Thanks to its robust vandal-resistant steel construction and IP66 environmental protection rating, it is suitable for outdoor use.

It enables automatic entry door opening simply by holding RFID transponders (cards or key fobs) near the device or via facial recognition. Additionally, the iAccess IA-E1 integrates an RJ45 LAN and WiFi network interface, allowing for network connectivity and programming via remote software (included), as well as the uploading and downloading of records stored in its memory. Thanks to the supplied PC management software, you can quickly obtain the input report.

Request Information

IA-E1 as access control for companies

The iAccess IA-E1 biometric RFID access control system is designed to be installed at company entrances or to secure specific departments.

Using the included Time Studio^® software, you can manage employee hours—such as setting specific permissions for each worker to determine who has access to certain areas—and monitor all staff entry/exit logs and clock-in times with just a few clicks.

Why is iAccess IA-E1 suitable for private properties?

The iAccess IA-E1 can be installed at the entrances of private properties—on gates, main doors, garages, and storage areas—preventing access by unauthorized persons or non-staff members. Only authorized owners can gain access, eliminating the inconvenience of dealing with keys.

The iAccess IA-E1 access control unit complies with privacy protection regulations; the facial data stored within it is indecipherable, thanks to the specific algorithm used to encrypt it.

What can you do with Time Studio^® software?

The included Time Studio^® software allows you to:

• obtain quickly a list of people present
• obtain reports on door openings (access to different departments) that can also be filtered by individual employee (useful in structured companies with many departments)

Request Information

iAccess IA-E1 Essential Specifications

• 125 KHz RFID card or key fob reader.
• Mifare 13.56 MHz RFID card or key fob reader.
• LAN network card and door opener relay
• Integrated WiFi network
• Register up to 10,000 users
• Store up to 150,000 steps (50,000 with photos)
• Integrated Wiegand OUT communication or Wiegand 26 bits
• Dimensions 56x183x34.6 mm
• Temperature: -40 to 65°C
• IP66 protection rating
• Electrical power supply: 12Vdc 2A
• Compatible with 802.3af PoE technology
• Time Studio^® Management Software included (Windows PC)
