iAccess TL-PASS
Bidirectional Tripod Turnstile
Prezzo: €1,470.00
TOR06TMP5
In stock
- Spedizione: Corriere Espresso - 24/48 h.
- Ordina entro le 15:00 e spediamo in giornata!

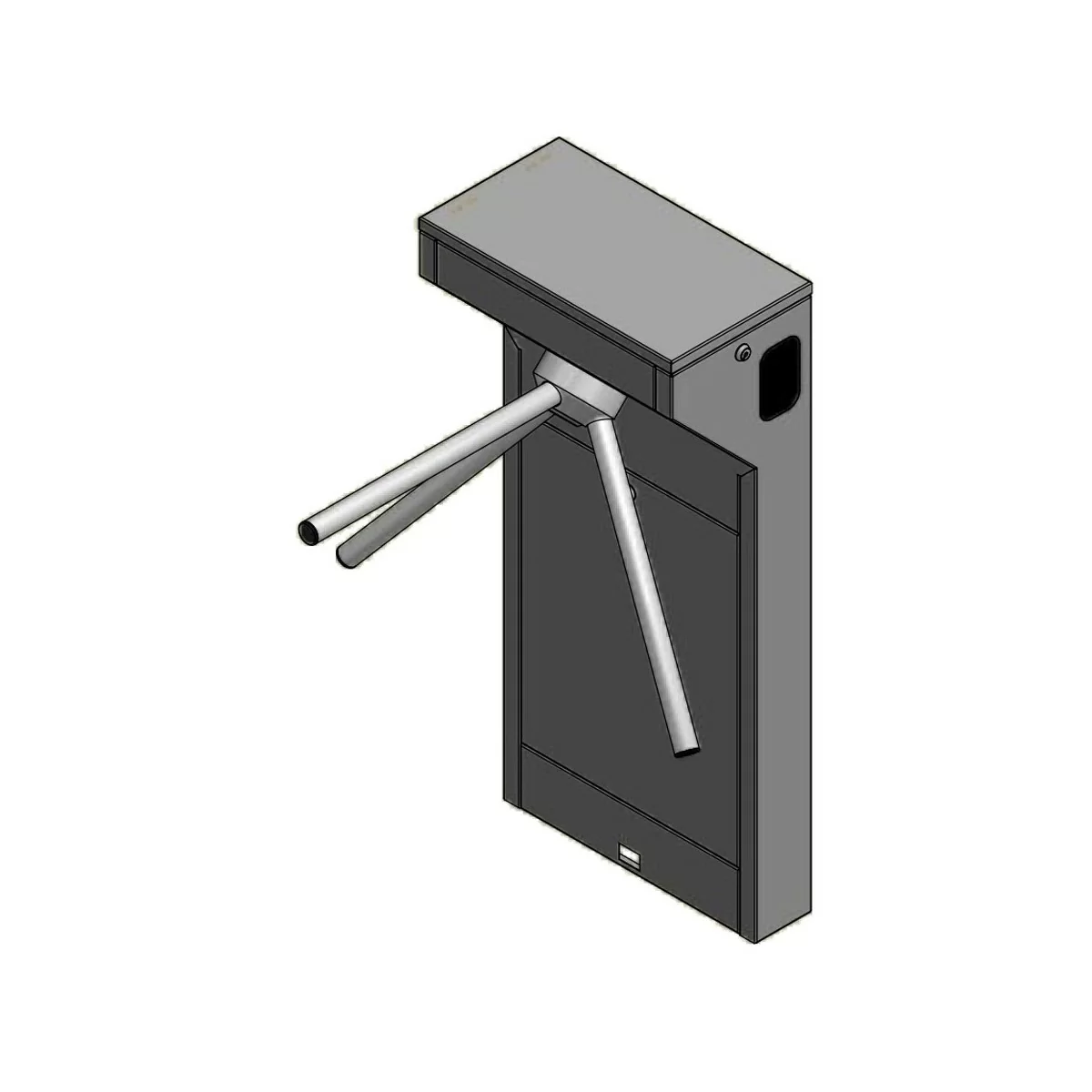

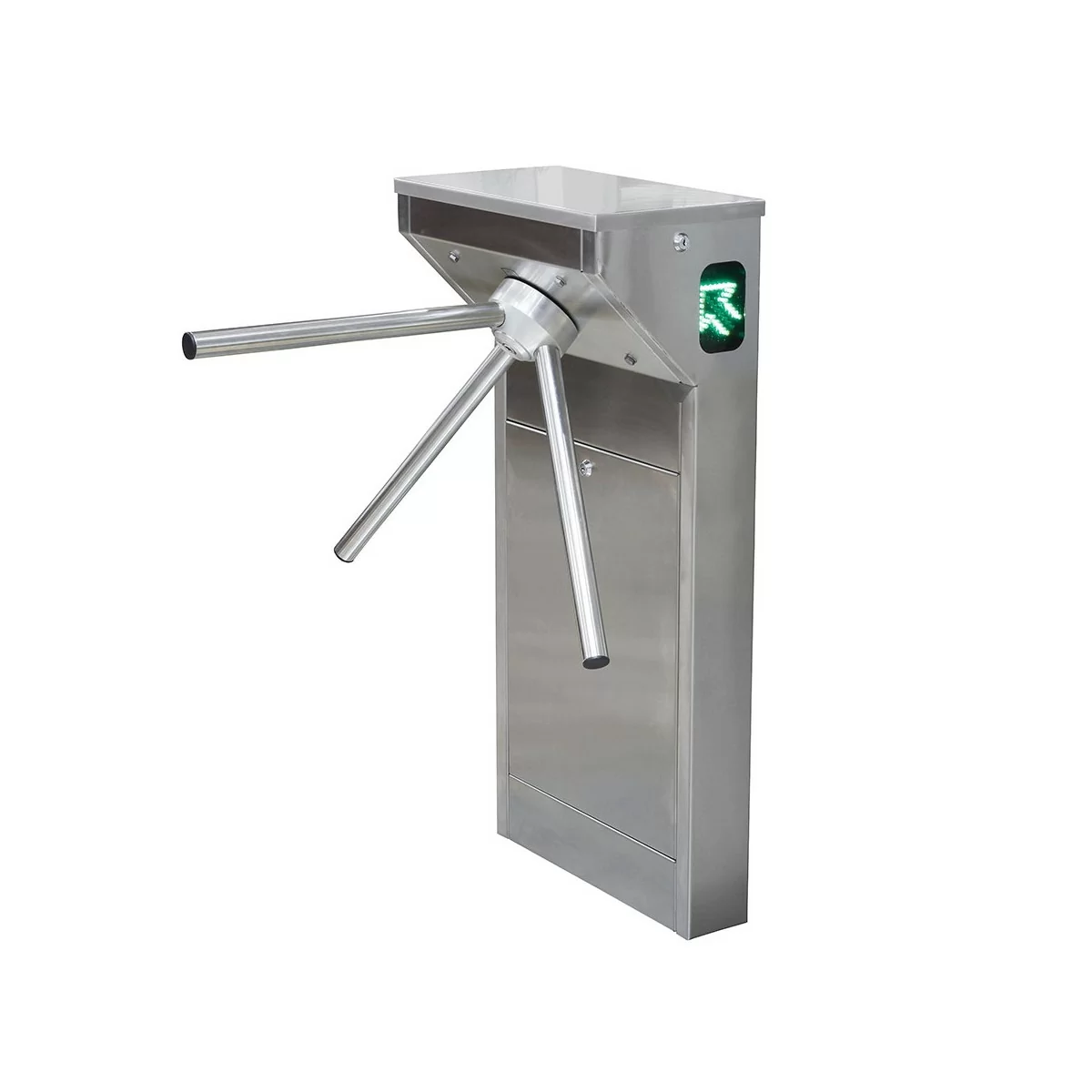

What is the iAccess TL-PASS Turnstile?
iAccess TL-Pass Turnstile is designed to provide easy pedestrian access control for both entry and exit. It features a modern, ergonomic design and is made of stainless steel.
The tripod turnstile can be easily connected to any access control system to allow passage only to authorized people or via a dedicated remote command.
The TL-Pass turnstile can also be placed outdoors without any problem, thanks to the materials used in its construction. If necessary, it can be covered with a protective sheet after use.
Installing and configuring the TL-PASS Turnstile
Installing the TL-PASS Turnstile is simple and fast. By following the instructions in the manual, the turnstile can be installed in just a few simple steps.
The turnstile works in complete autonomy; it simply needs to be powered at 24 V.
It is possible to customize the turnstile operation, entry/exit, according to your needs by choosing from three different operating modes.
- Free Passage: free passage without the need for an unlock signal
- Controlled Passage: passage allowed only after an unlock signal
- Disabled Passage: passage not allowed
TL-PASS Turnstile and M4-XP terminal combination
The combination of the TL-PASS tripod turnstile and the M4-XP access control terminal is a complete and versatile solution for managing people flow safely and efficiently. The TL-PASS acts as a physical barrier, preventing unauthorized access, while the M4-XP terminal integrates advanced features such as RFID badge reading and Wi-Fi connection, enabling centralized and simplified management. The integration of the two devices guarantees a reliable access control system, ideal for any context where high standards of security, practicality and operational control are required.
Using this combination is the ideal solution to control entries and exits:
- Greater control, security and accuracy thanks to the Time Studio Software for management and monitoring
- Reduced personnel costs for gate control
- Ability to control gates and manage credentials remotely, without being physically present on site
- Review flows, attendance and access events afterward
- Information sharing
- Allow authorized staff or users with specific qualifications to access certain areas at specific times
What can you do with Time Studio Software?
Time Studio Software offers the possibility to:
- Centralize the management of any number of iAccess terminals
- Quickly synchronize users between the software and iAccess terminals
- Quickly import users, records and devices from Time Studio software
- Obtain reports on door openings, filterable by individual employee
- Review flows, attendance and access events afterward
Try Time Studio free for 30 days
Download our software now and start managing your business better
Download NOW
Where can the turnstile be installed?
The TL-PASS turnstile is the ideal solution to control entries and exits in:
- Swimming pools
- Sports centers
- Gyms
- Schools
- Libraries
- Amusement parks
- Water parks
- Airports
- Events in general
Essential specifications
- Power consumption: 30W
- Passage blocking: through the tripod arms positioned at 120°
- Tripod arm stop: through 24V solenoids. In case of emergency or power failure, the system is deactivated, allowing passage in both directions.
- Passage direction control: bidirectional free passage, entry and exit control.
- Movement control: when the cycle starts in one direction, the opposite direction is blocked.
- Installation: simple and fast
- Operating temperature: from -20° to +70°C
- Indicators: 1 light indicator in both directions
- Optional accessories: remote control
- Dimensions: 970x450x800 mm. (HxWxD)
- Weight: 40 kg.
Standard equipment
- TL-PASS
- Weight
- Bracci tripode abbattibili, Controllo Remoto, Unità inserimento monete.
- Dimensions
- 1 indicatore luminoso su entrambe le direzioni
- Optional accessories
- 35 kg
- Temperatura di funzionamento
- 290x450x950 mm.
- Consumi
- Tramite i bracci del tripode, posizionati a 120°
- Blocco dei passaggi
- Tramite solenoidi 24V. in caso di emergenza o mancanza di rete il sistema si disattiva permettendo il passaggio in ambi sensi.
- Arresto bracci tripode
- Bidirezionale libera, Controllo ingresso e uscita.
- Controllo Direzione Passaggi
- Semplice e veloce, grazie allo speciale piedistallo
- Controllo Movimento
- 1 indicatore luminoso su entrambe le direzioni
- Installazione
- 1 indicatore luminoso su entrambe le direzioni
- Indicatori
- Semplice e Veloce
