iAccess HM-PASS-IX
Motorized Barrier
Prezzo: €0.00
TOR06H1MX

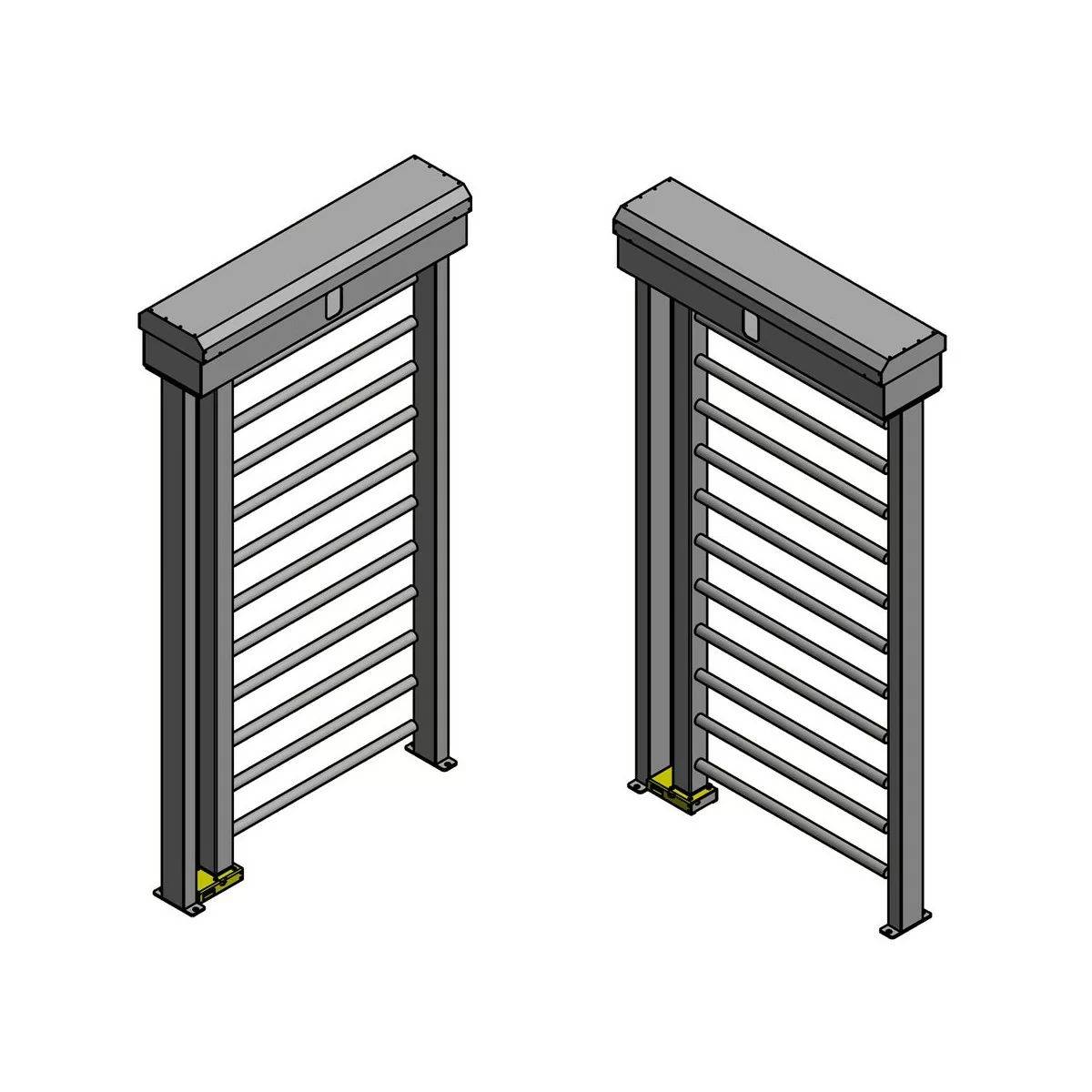

What is the iAccess HM-PASS-IX Barrier?
iAccess HM-PASS-IX is a full-height motorized barrier with a single lane, creating a non-climbable barrier designed to allow the passage of people and materials. It is particularly suitable for controlling access with standard flows and is used in all environments where strict and peripheral control is required.
It has an extremely robust structure made entirely of AISI 304 stainless steel with 3 sectors connected to a movement system specifically designed to withstand very high mechanical stress.
The iAccess HM-PASS-IX barrier is made entirely of AISI 304 stainless steel
Installing the iAccess HM-PASS-IX barrier
Installing the iAccess HM-PASS-IX barrier is simple and fast. By following the manual instructions, the turnstile can be installed in just a few simple steps.
The turnstile works completely independently: it only needs to be powered at 220V.
It is possible to customize the turnstile operation for entry/exit according to your needs, choosing from the different operating modes.
Where can the iAccess HM-PASS-IX barrier be installed?
It can be easily interfaced with any iAccess Access Control system to allow passage only to authorized people or through a dedicated remote command.
Suitable for:
- Places with large and small crowds
- Events and meeting places
- Museums and places of worship
- Institutions and associations
Key Specifications
- Type: single-lane full-height motorized barrier
- Power supply: 220V 50Hz, single-phase
- Usage environment: places with large and small crowds, museums and institutions
- Weight: 250 kg
- Material: 304 stainless steel
- Passage release: bidirectional electric
- Central rotor: central rotor made entirely of 304 stainless steel
- Traffic lights: LED traffic lights with green arrow signal and red cross
- Cable routing: through the turnstile uprights
- Fixing: floor fixing with expansion screws
- Electromagnet voltage: 24 Vdc
- Operating temperature: from -20°C to +70°C
- Transit speed: 40-70 people per minute
- Power: 70W
- Protection rating: IP65
- Opening: motorized with adjustable timing
Standard Equipment
- iAccess HM-PASS-IX steel barrier
- Power Supply 220 V
- Power supply: 220V 50Hz, single phase
- Operating environment
- Places with large and small crowds, museums and institutions
- Weight
- 250 kg
- Materiale
- INOX 304
- Sbocco dei passaggi
- Two-way electric
- Rotore centrale
- Central rotor made entirely of 304 stainless steel
- Semafori
- LED traffic lights with green arrow and red cross
- Passaggio cavi
- Through the turnstile risers
- Fissaggio
- Fixing to the floor from the base using expansion bolts
- Tensione elettromagneti
- 24 Vcc
- Temperatura di funzionamento
- From -20C° to +70C°
- Velocità di transito
- 40-70 people for minute
- Tipology
- Full-height motorized barrier with single gate
- Power
- 70W
- Degree of protection
- IP65
- Opening
- Motorized with settable time
