Rotating Turnstile iAccess H2T-PASS-IX Access Control

iAccess H2T-PASS-IX

Rotating Turnstile

Prezzo: €0.00
TOR06H2TX
Trustpilot
Quantity:

    What is the iAccess H2T-PASS-IX Turnstile?

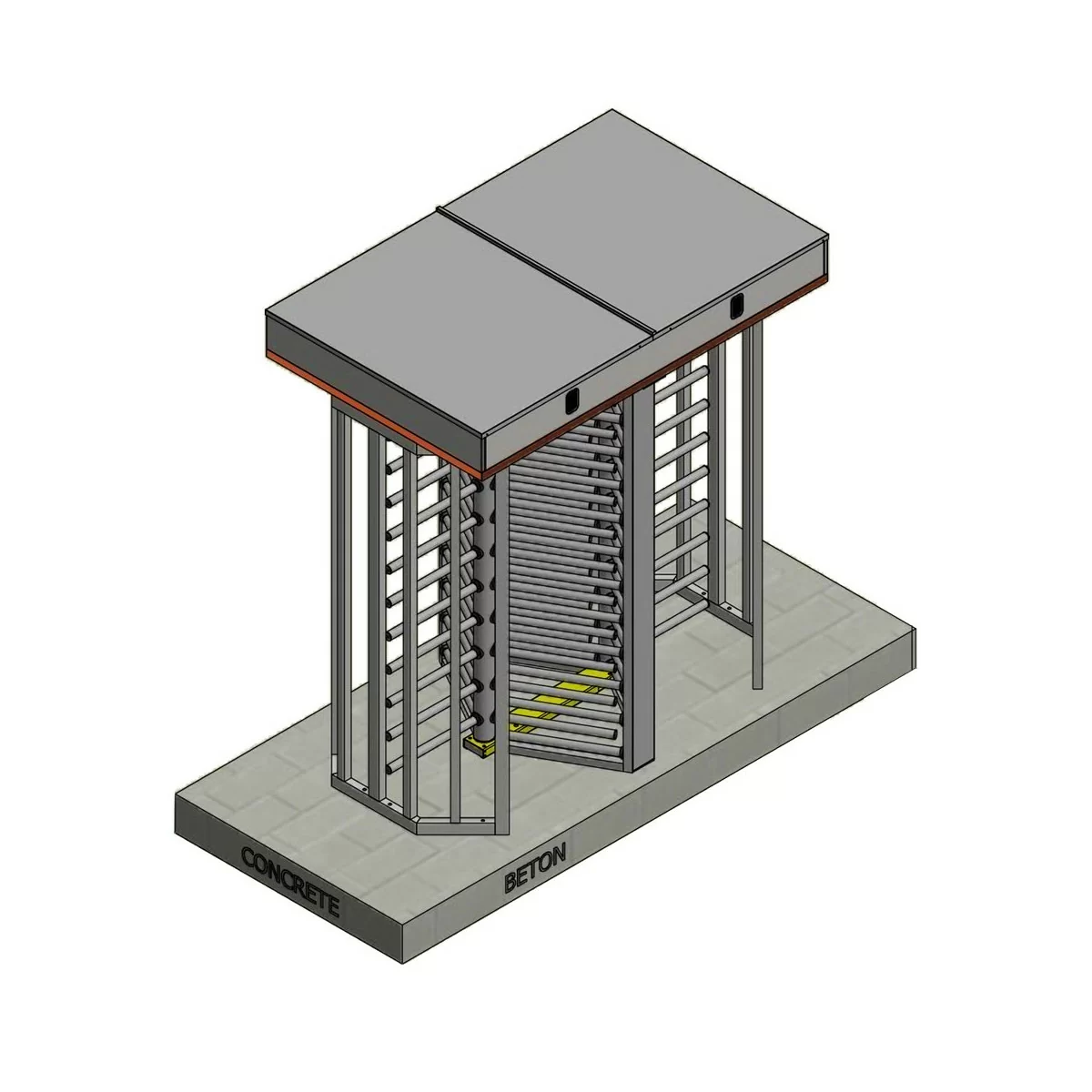

    iAccess H2T-PASS-IX is a full-height double-lane rotating turnstile made entirely of steel.

    It has an extremely robust structure made entirely of AISI 304 stainless steel with 3 sectors connected to a movement system specifically designed to withstand very high mechanical stress.

    When interfaced with biometric access control systems or RFID badges from the same iAccess brand, its effectiveness in allowing passage only to authorized users or through a dedicated remote command increases significantly.

    iAccess H2T-PASS-IX Turnstile
    Request Information

    iAccess H2T-PASS-IX features a non-climbable barrier designed to allow the passage of only one person at a time, making it particularly suitable for Access Control in places where strict and peripheral control is required.

    Installing iAccess H2T-PASS-IX

    iAccess H2T-PASS-IX Turnstile

    Installing the iAccess HT-PASS-IX Turnstile is simple and fast. By following the manual instructions, the turnstile can be installed in just a few simple steps.
    The turnstile works completely independently: it only needs to be powered at 220V.

    It is possible to customize the turnstile operation for entry/exit according to your needs, choosing from the different operating modes.

    Traffic light signaling

    • LED with green arrow: free passage without the need for an unlocking signal
    • LED with red cross: passage not allowed
    Request Information
    iAccess H2T-PASS-IX Turnstile
    iAccess H2T-PASS-IX Turnstile

    Where can iAccess H2T-PASS-IX be installed?

    iAccess H2T-PASS-IX Turnstile

    iAccess H2T-PASS-IX is designed to be useful in places that require strict control to maintain the security of the environment where it is installed, such as:

    • National and international events
    • Large boarding areas
    • Institutional and government offices

    Key Specifications

    • Type: DOUBLE full-height vertical turnstile
    • Power supply: 220V 50Hz, single-phase
    • Usage environment: international events, large boarding areas and government institutions
    • Weight: 700 kg
    • Material: 304 stainless steel
    • Passage release: bidirectional electric
    • Central rotor: central rotor made entirely of 304 stainless steel
    • Traffic lights: LED traffic lights with green arrow signal and red cross
    • Cable routing: through the turnstile uprights
    • Fixing: floor fixing with expansion screws
    • Electromagnet voltage: 24 Vdc
    • Operating temperature: from -20°C to +70°C
    • Transit speed: 40-70 people per minute
    • Power: 140W
    • Protection rating: IP55 - IP65 with optional cover

    Standard Equipment

    • iAccess H2T-PASS-IX turnstile
    Power Supply 220 V
    Power supply: 220V 50Hz, single phase
    Operating environment
    International events, major shipping locations and government agencies
    Weight
    700 kg
    Materiale
    INOX 304
    Sbocco dei passaggi
    Two-way electric
    Rotore centrale
    Central rotor made entirely of 304 stainless steel
    Semafori
    LED traffic lights with green arrow and red cross
    Passaggio cavi
    Cable passage through the turnstile risers
    Fissaggio
    Fixing to the floor from the base using expansion bolts
    Tensione elettromagneti
    24 Vcc
    Temperatura di funzionamento
    From -20C° to +70C°
    Velocità di transito
    40-70 people for minute
    Tipology
    Full height DOUBLE vertical turnstile
    Power
    140W
    Degree of protection
    IP55 - IP65 with optional cover
