    What is the iAccess HT-PASS-IX Turnstile?

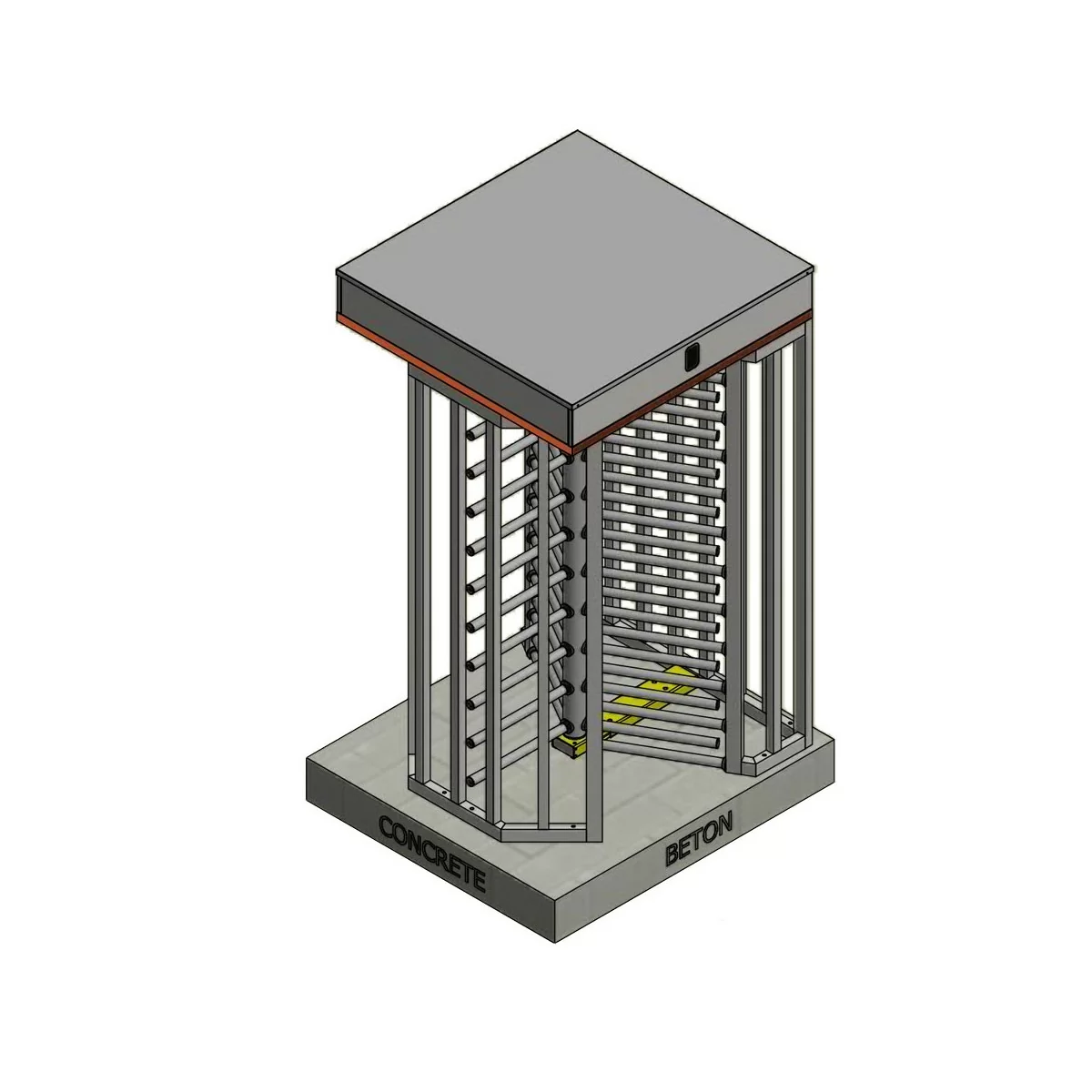

    iAccess HT-Pass IX is a single-lane full-height rotary turnstile made entirely of steel.

    It features an extremely robust structure made entirely of AISI 304 stainless steel, with 3 sectors connected to a movement system specifically designed to withstand very high mechanical stress.

    When integrated with the same iAccess brand biometric Access Control systems or RFID badges, its effectiveness in allowing access only to authorised users, or via a dedicated remote command, increases significantly.

    iAccess HT-PASS-IX Turnstile
    Request Information

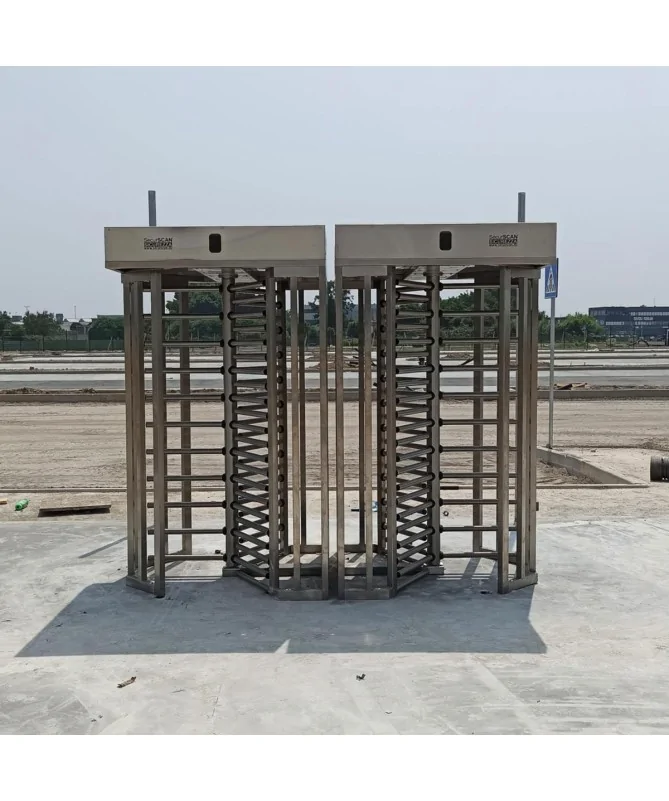

    The iAccess HT-PASS-IX Turnstile is a non-bypassable barrier designed to allow only one person to pass through at a time, making it particularly suitable for outdoor environments as an Access Control solution.

    Installing the iAccess HT-PASS-IX

    iAccess HT-PASS-IX Turnstile

    Installing the iAccess HT-PASS-IX Turnstile is simple and fast. By following the manual instructions, the turnstile can be installed in a few easy steps.
    The turnstile operates completely independently and only needs a 220V power supply.

    It is possible to customise the operation of the turnstile — entry/exit — according to your needs, choosing from the different operating modes available.

    Traffic light indicators

    • LED with green arrow: free passage without the need for an unlock signal
    • LED with red cross: passage not allowed
    Request Information
    iAccess HT-PASS-IX Turnstile
    iAccess HT-PASS-IX Turnstile

    Where can the iAccess HT-PASS-IX be installed?

    iAccess HT-PASS-IX Turnstile

    Equipped with a canopy made from the same material, 304 stainless steel, iAccess HT-Pass IX is extremely useful for controlling access in standard-flow areas and can be used in all environments where strict control is required, such as:

    • Stadiums, racetracks, concerts
    • Airports, boarding areas, railway and metro stations
    • Government offices, courts, prisons, embassies

    Essential specifications

    • Type: Single-lane full-height rotary turnstile
    • Power supply: Electrical power supply: 220V 50Hz, single-phase
    • Use environment: Large events, boarding areas, government institutions
    • Weight: 450 kg
    • Material: 304 stainless steel
    • Central rotor: Central rotor made entirely of 304 stainless steel
    • Traffic lights: LED traffic lights with green arrow and red cross signals
    • Cable routing: Cable routing through the turnstile uprights
    • Fixing: Floor fixing from the base using expansion anchors
    • Operating temperature: from -20°C to +70°C

    Standard equipment

    • iAccess HT-PASS-IX Turnstile
    Power Supply 220 V
    Power supply: 220V 50Hz, single phase
    Operating environment
    Major events, embarkation locations, government agencies
    Weight
    450 kg
    Materiale
    INOX 304
    Rotore centrale
    Central rotor made entirely of 304 stainless steel
    Semafori
    LED traffic lights with green arrow and red cross
    Passaggio cavi
    Cable passage through the turnstile risers
    Fissaggio
    Fixing to the floor from the base using expansion bolts
    Temperatura di funzionamento
    From -20C° to +70C°
    Tipology
    Single gate full-height revolving turnstile
