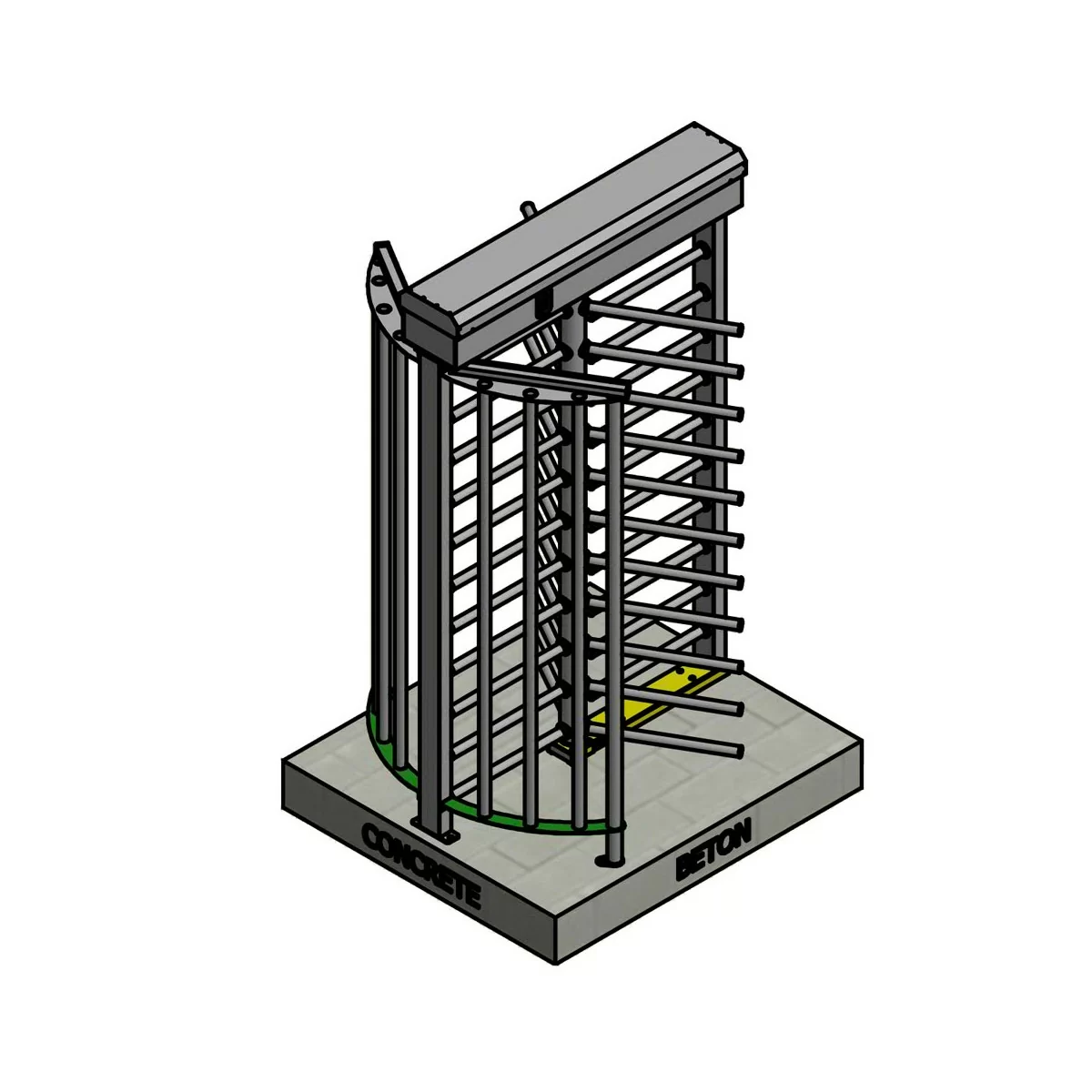

Full-Height Turnstile | iAccess HL-PASS

iAccess HL-PASS

Full-Height Turnstile

Prezzo: €0.00
TOR06H1LP
Trustpilot
Quantity:

    What is the iAccess HL-PASS Turnstile?

    iAccess HL-PASS is a single-lane full-height rotary turnstile, designed to create a non-climbable barrier that allows only one person to pass through at a time. It is particularly suitable for controlling access in standard-flow areas and for all locations where strict perimeter control is required.

    It has a robust structure made entirely of galvanised and painted steel, integrated with a 3-sector stainless steel rotor connected to a movement system specifically designed to withstand very high mechanical stress.
    It can be easily interfaced with any access control system to allow passage only to authorised people or via a dedicated remote command.

    HL-PASS Turnstile
    Request Information

    How do I install the HL-PASS Turnstile?

    HL-PASS Turnstile

    Installing the HL-PASS Turnstile is simple and fast. By following the manual instructions, the turnstile can be installed in a few easy steps.
    The turnstile operates completely independently and only needs a 24 V power supply.

    It is possible to customise the operation of the turnstile — entry/exit — according to your needs, choosing from three different operating modes.

    • Free Passage: free passage without the need for an unlock signal
    • Controlled Passage: passage allowed only after an unlock signal
    • Disabled Passage: passage not allowed
    Request Information
    HL-PASS Turnstile
    HL-PASS Turnstile

    Where can the HL-PASS Turnstile be installed?

    HL-PASS Turnstile

    The HL-PASS Turnstile is the ideal solution for controlling entrances and exits in:

    • Airports, boarding areas, railway and metro stations
    • Government offices, courts, prisons, embassies
    • Stadiums, sports arenas, concerts

    Essential specifications

    • Type: Vertical single full-height turnstile
    • Protection: IP55 - IP65 with optional treatment
    • Power supply: 220V 50Hz, single-phase
    • Weight: 350 kg.
    • Material: Steel
    • Passage release: Bidirectional electric control
    • Central rotor: Made of stainless steel
    • Painting: Powder coating
    • Traffic lights: LED
    • Compatibility: Can be interfaced with any access control system
    • Cable routing: Through the uprights
    • Fixing: Floor fixing with expansion anchors
    • Electromagnet voltage: 24 Vdc - Power: 70W.
    • Operating temperature: From -20°C to +70°C
    • Transit speed: 20-35 people per minute

    Standard equipment

    • HL-PASS Turnstile
    Protection
    IP55 - IP65 con trattamento opzionale
    Power Supply 220 V
    220V 50Hz, monofase
    Weight
    350 kg.
    Materiale
    Acciaio
    Sbocco dei passaggi
    Elettrico bidirezionale
    Rotore centrale
    Realizzato in acciaio inox
    Verniciatura
    A polvere
    Semafori
    A led
    Compatibilità
    Interfacciabile a qualsiasi sistema di controllo accessi
    Passaggio cavi
    Attraverso le colonne montanti
    Fissaggio
    A pavimento con tasselli a espansione
    Tensione elettromagneti
    24 Vcc - Potenza: 70W.
    Temperatura di funzionamento
    Da -20C° a +70C°
    Velocità di transito
    20-35 persone al minuto
    Tipology
    Verticale singolo a tutta altezza

    HL-PASS
