iAccess ML-PASS

Motorised Access Gate

Prezzo: €0.00
TOR06FMP2
In stock
Trustpilot
Quantity:

  • Spedizione: Corriere Espresso - 24/48 h.
  • Ordina entro le 15:00 e spediamo in giornata!

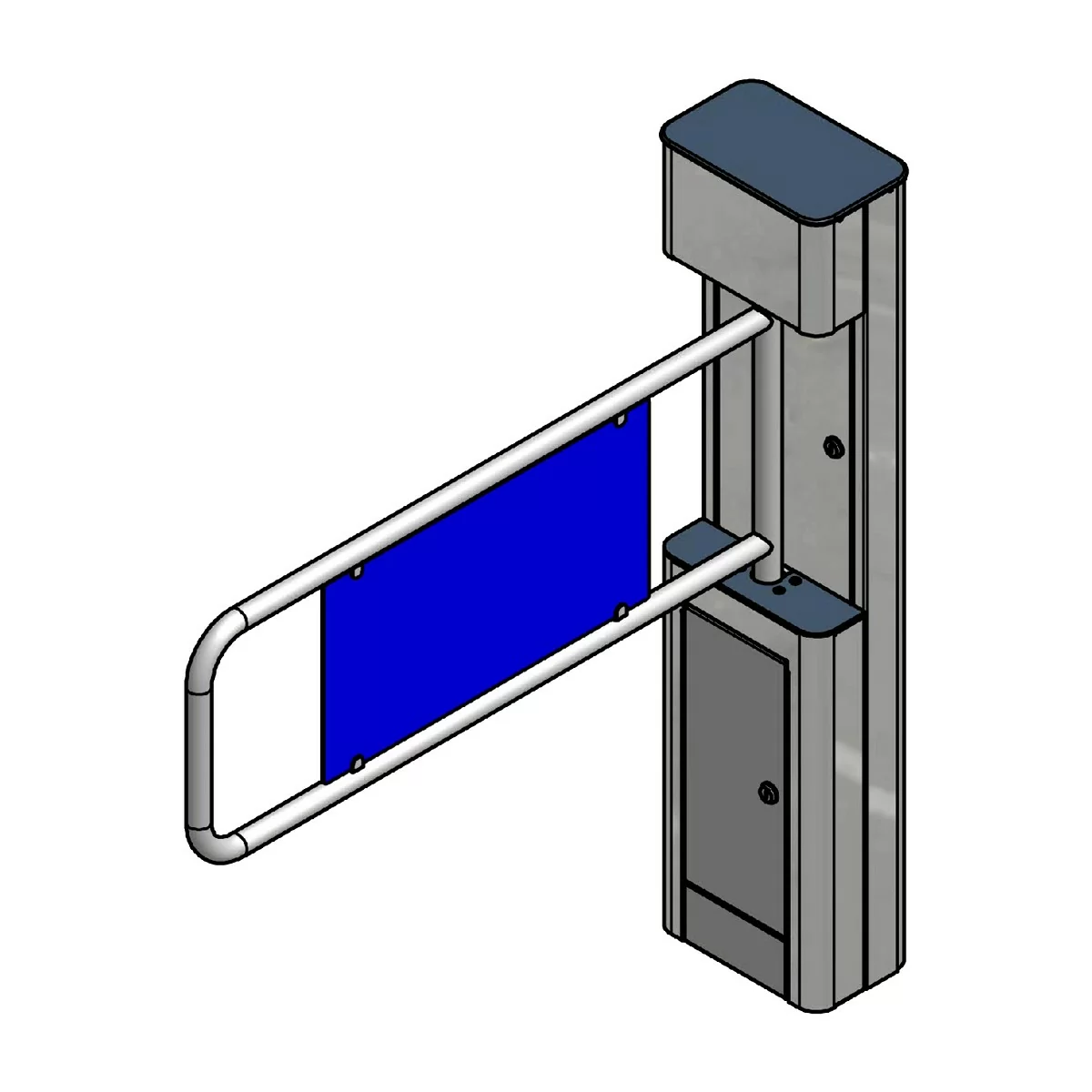

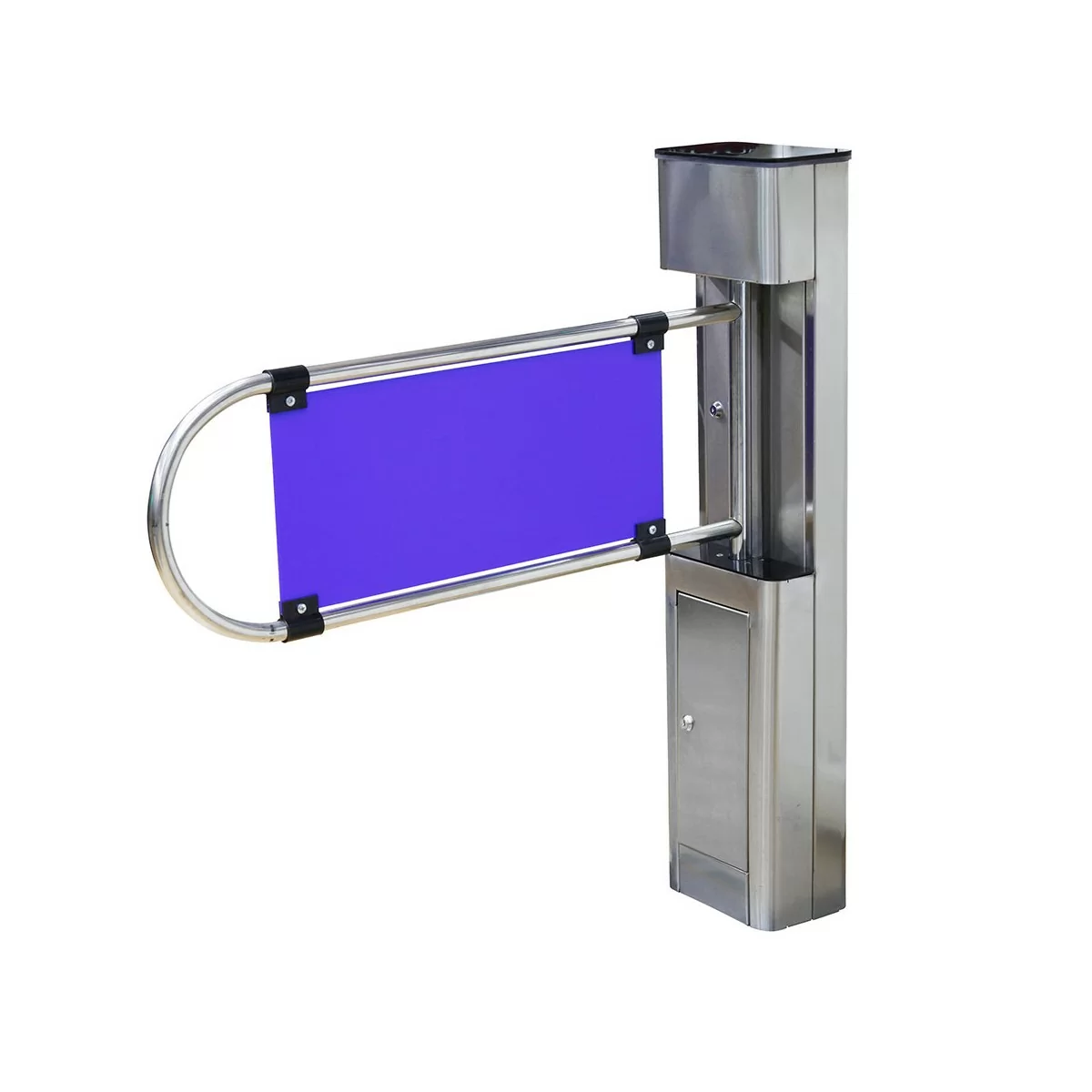

What is the iAccess ML-PASS Turnstile?

The ML-PASS swing turnstile in 304 stainless steel, integrated with iAccess Access Control systems, is ideal for public environments.

The ML-PASS is particularly suitable for controlling the flow of people entering and exiting, making passage easier and helping to prevent queues.

ML-PASS Turnstile
Request Information

The swing turnstile is equipped with a dedicated anti-panic device that allows unlocking and therefore free passage in case of emergency.

Installing the ML-PASS Turnstile

ML-PASS Turnstile

Installation and configuration are simple and fast.

It can be controlled by “dry” contact or any recommended voltage.
It can be used with all types of access control units.

Main functions

  • Locking: It is locked with 24DC solenoids. In case of emergency, the system switches off and the turnstiles provide free passage in both directions.
  • Passage Control: Independent bi-directional entry/exit control.
Request Information
ML-PASS Turnstile
ML-PASS Turnstile

Where can the Turnstile be installed?

ML-PASS Turnstile

The ML-PASS Turnstile is the ideal solution for controlling entrances and exits in:

  • Swimming pools
  • Sports centres
  • Gyms
  • Schools
  • etc.

Essential specifications

  • Automatic servo-assisted bidirectional operation
  • Made of AISI 304 stainless steel with variable thickness from 1.5mm to 2.0mm
  • In an emergency, it deactivates to allow passage in both directions
  • Gate can close automatically or by command
  • Floor fixing using expansion screws
  • Operating temperature: from -20°C to +60°C
  • Transit speed: 30-40 people per minute
  • Power supply: 220V-50Hz single-phase - 24Vdc - Power 30W
  • Dimensions 991 x 256 x 1065 mm (WxDxH)
  • Weight: 40Kg
  • Gate width: 835mm. Ideal for disabled access.

Standard equipment

  • ML-PASS Turnstile
Power Supply 220 V
220V-50Hz monofase
Weight
40Kg
Materiale
Acciaio inox AISI 304 con spessore variabile da 1.5mm a 2.0mm
Dimensions
991 x 256 x 1065 mm (LxPxA)
Temperatura di funzionamento
da -20°C a +60°C
Velocità di transito
30-40 persone al minuto
Power
Potenza 30W
Larghezza cancelletto
si disattiva permettendo il passaggio in ambi i sensi
In caso di emergenza
835mm. Ottimale per passaggio disabili.
