iAccess T2L-PASS
Double Tripod Turnstile
Prezzo: €0.00
TOR06T2LP
In stock
- Spedizione: Corriere Espresso - 24/48 h.
- Ordina entro le 15:00 e spediamo in giornata!

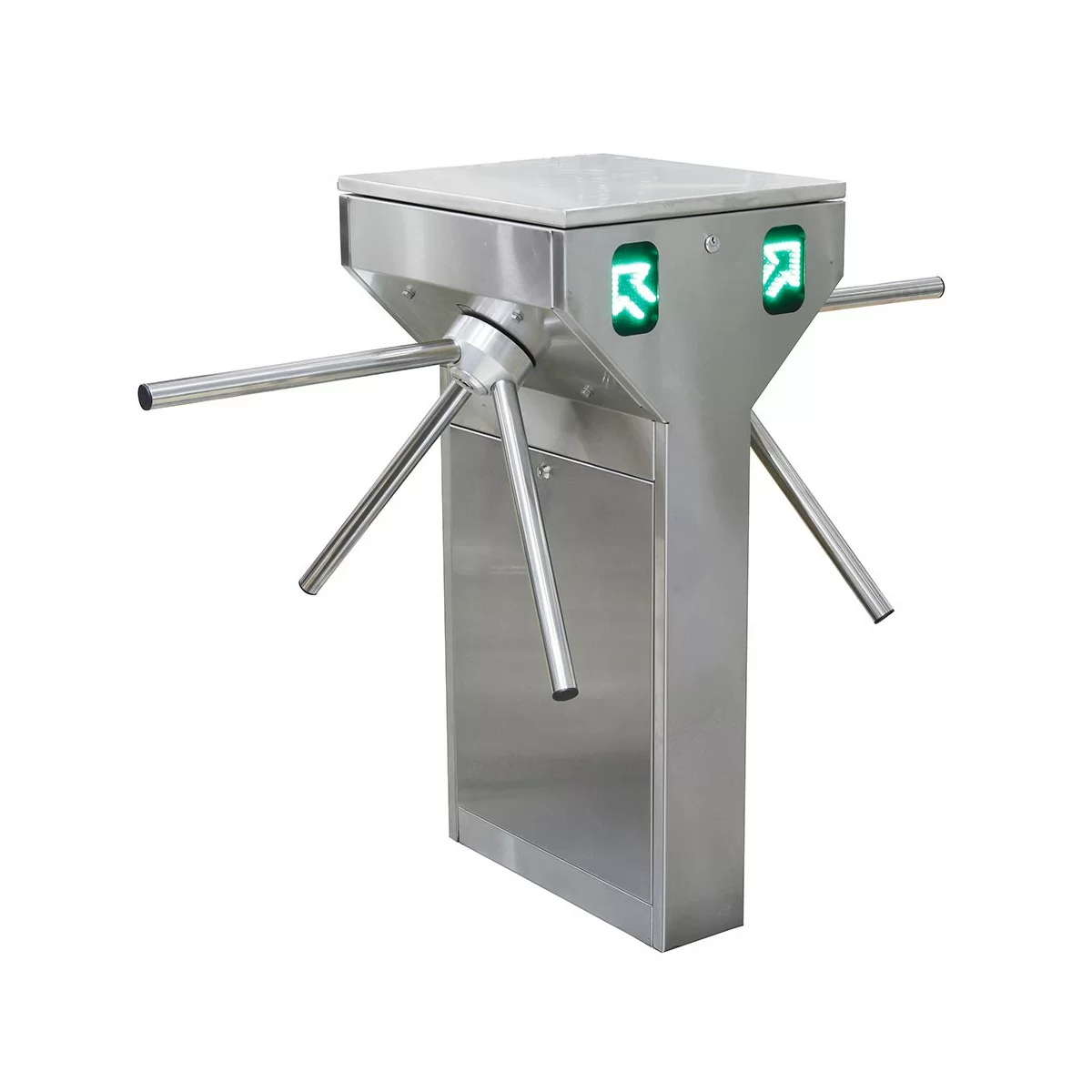

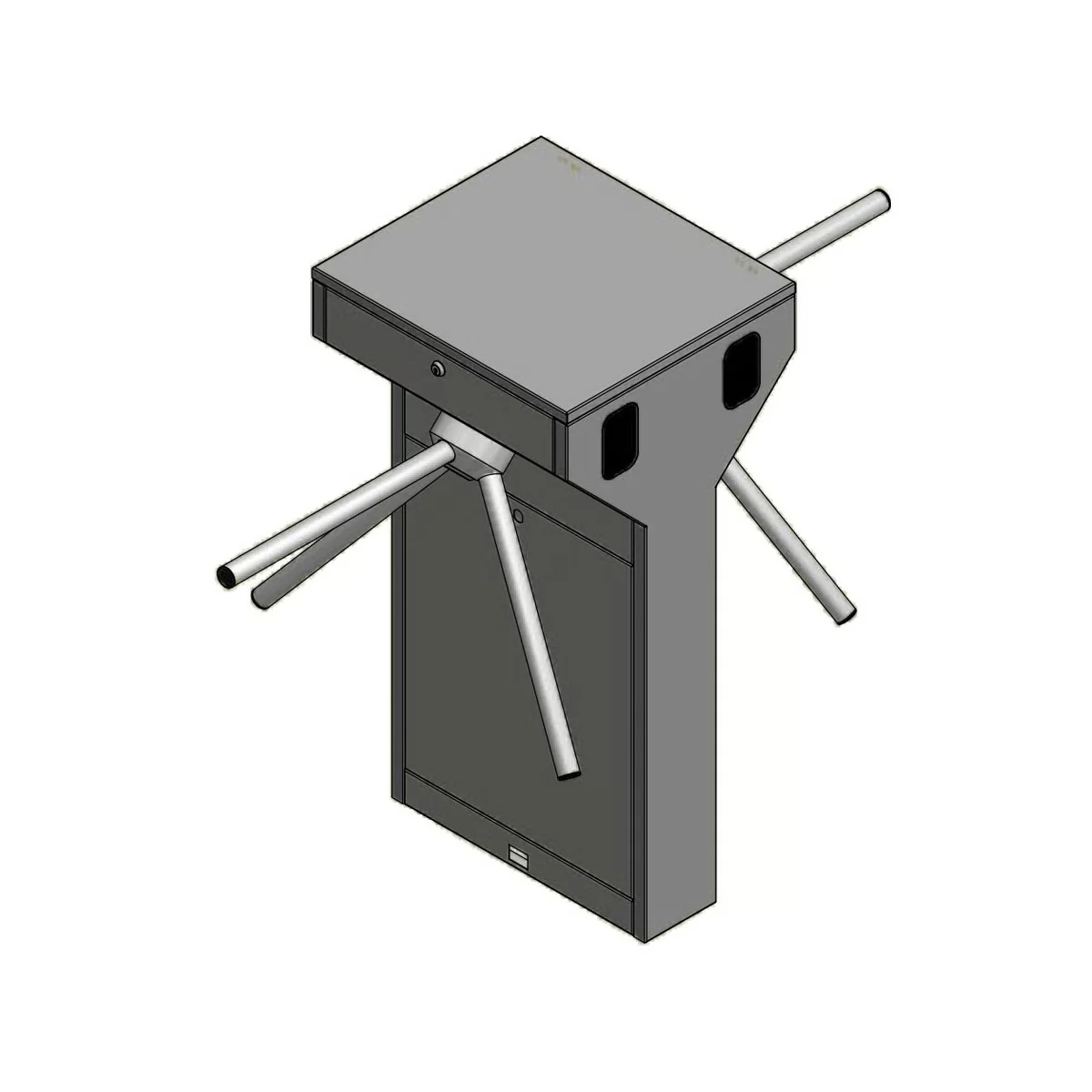

What is the iAccess T2L-PASS Turnstile?
The iAccess T2L-PASS turnstile is designed to allow easy pedestrian access control for entry and exit.
It features a modern and ergonomic design and is made of stainless steel.
The bidirectional tripod turnstile can be easily interfaced with any access control system to allow passage only to authorised people or via a dedicated remote command.
Users can access your facility using an RFID badge or the previously assigned QR Code, with time validity limited by the managers.
The T2L-PASS turnstile can also be positioned outdoors without any problem.
Installing and configuring the T2L-PASS Turnstile
Installing the T2L-PASS Turnstile is simple and fast. By following the manual instructions, the turnstile can be installed in a few easy steps.
The turnstile operates in complete autonomy; it only needs a 24 V power supply.
It is possible to customise the operation of the turnstile — entry/exit — according to your needs, choosing from three different operating modes.
- Free Passage: free passage without the need for an unlock signal
- Controlled Passage: passage allowed only after an unlock signal
- Disabled Passage: passage not allowed
Where can the Turnstile be installed?
The T2L-PASS turnstile is the ideal solution for controlling entrances and exits in:
- Swimming pools
- Sports centres
- Gyms
- Schools
- Libraries
- Amusement parks
- Water parks
- Airports
- Events in general
Essential specifications
- Consumption: 30W
- Passage locking: Through the tripod arms, positioned at 120°
- Tripod arm stop: Through 24V solenoids. In case of emergency or power failure, the system deactivates, allowing passage in both directions.
- Passage direction control: Free bidirectional, entry and exit control.
- Movement control: When the cycle starts in one direction, the reverse direction is locked.
- Installation: Simple and fast, thanks to the special pedestal
- Operating temperature: from -20° to +70°C
- Indicators: 1 light indicator in both directions
- Optional accessories: Remote control
- Dimensions: 977x1290x500 mm. (HxWxD)
- Weight: 66 kg.
Standard equipment
- T2L-PASS
- Weight
- Tramite solenoidi 24V. in caso di emergenza o mancanza di rete il sistema si disattiva permettendo il passaggio in ambi sensi
- Dimensions
- Tramite i bracci del tripode, posizionati a 120°
- Optional accessories
- Semplice e veloce, grazie allo speciale piedistallo
- Temperatura di funzionamento
- da -20° a +70°C
- Consumi
- Bracci tripode abbattibili, Controllo Remoto, Unità inserimento monete.
- Blocco dei passaggi
- 290x450x950 mm.
- Arresto bracci tripode
- 1 indicatore luminoso su entrambe le direzioni
- Controllo Movimento
- 1 indicatore luminoso su entrambe le direzioni
- Installazione
- 1 indicatore luminoso su entrambe le direzioni
- Installazione
- 1 indicatore luminoso su entrambe le direzioni
- Indicatori
- Semplice e Veloce
