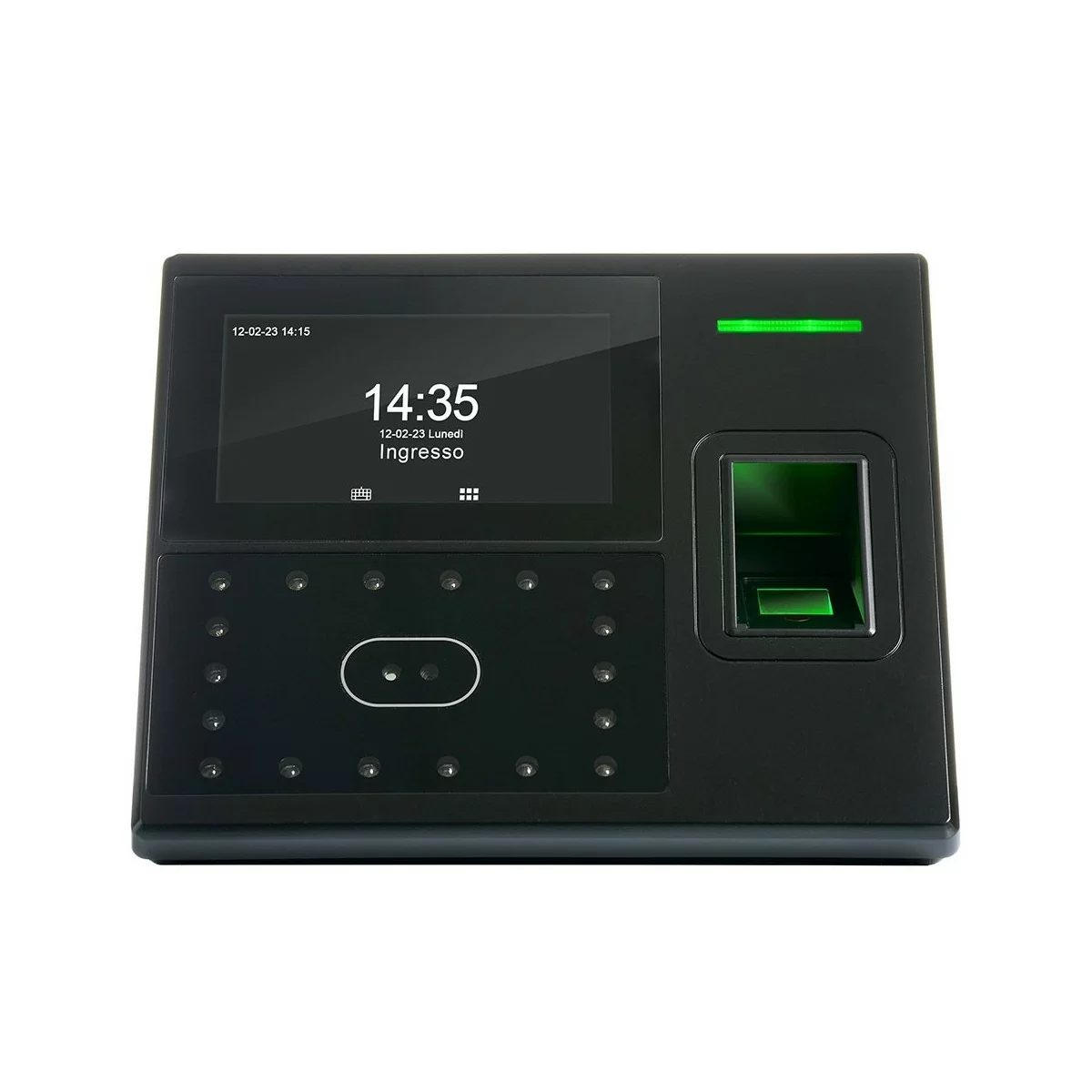

iAccess xFace 103 V2
Biometric Time Clock
What is iAccess xFace 103 V2?
iAccess xFace 103 V2 is a time and attendance clock with access control, suitable for any business organization, from the simplest one with 10 employees to more complex structures with multiple sites and hundreds of employees.
The iAccess 103 V2 time clock includes Time Studio attendance management software, with no user limitations, unlimited license and no additional fees, valid for Time Studio account activation on a single PC workstation, allowing you to control employee access events and clocking times in just a few steps.
*3-month free trial of all additional software modules:
The iAccess xFace 103 V2 time clock uses the following technologies:
- Facial recognition
- Fingerprint
- RFID cards and key fobs
Thanks to the high-definition camera with infrared technology, the access control system can identify a face in low-light conditions.
The integrated backup battery allows the xFace 103 V2 time clock and access control system to be used even during a power outage for over 2 hours.
It has a standard 2-year European warranty, with the option to extend it to 3 or 5 years.
How do I install and configure xFace 103 V2?
iAccess xFace 103 V2 is easy to install, and the attendance management software can be configured in a very short time: you will finally always have your employees’ attendance under control.
By requesting a demo and taking advantage of iAccess staff support, through the purchase of the Assistance Pack product, you can be guided through the process and install and configure the device independently.
How can I monitor xFace 103 V2?
Thanks to the exclusive Time Studio management software, you can monitor staff entries and exits in just a few clicks.
All data can be easily exported through:
- LAN network
- Wi-Fi network
- USB memory.
What can you do with Time Studio Software?
- Quickly receive the list of people present
- Print attendance hour reports for each employee
- Take advantage of the convenience of the “justification” function
- Decide and change access permissions
Why buy an xFace 103 V2 time clock?
All iAccess systems offer exceptional ease of use and meet the highest quality requirements.

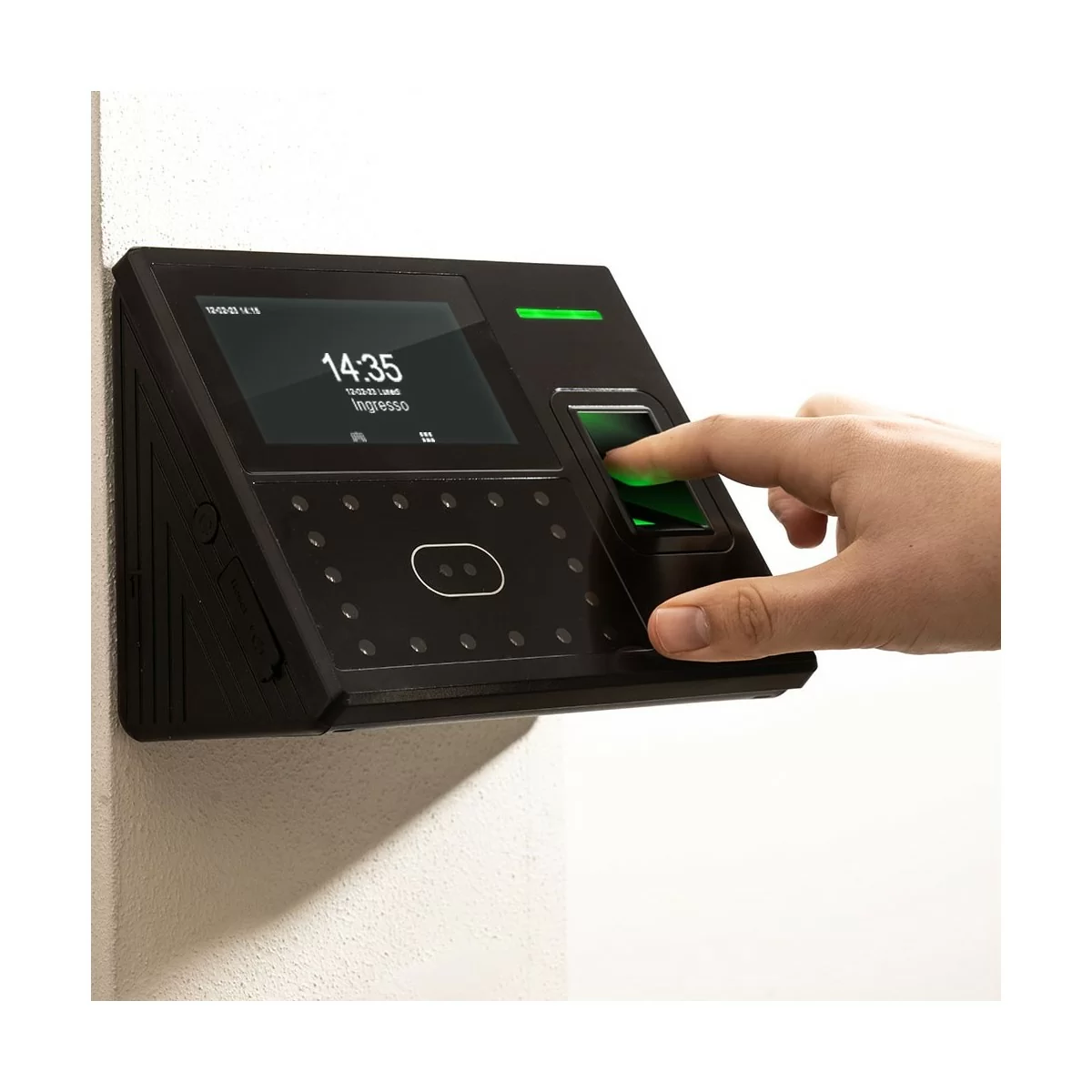

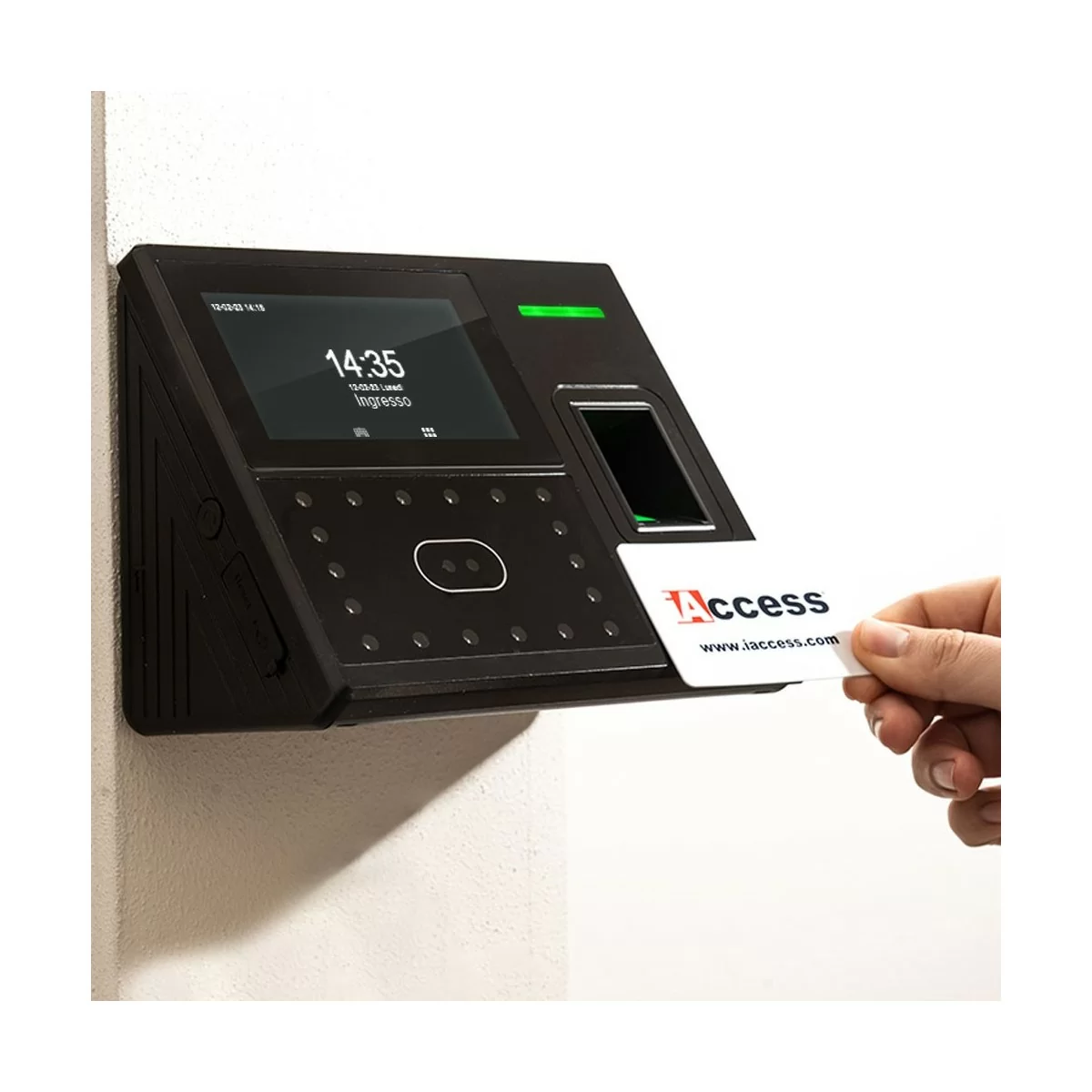

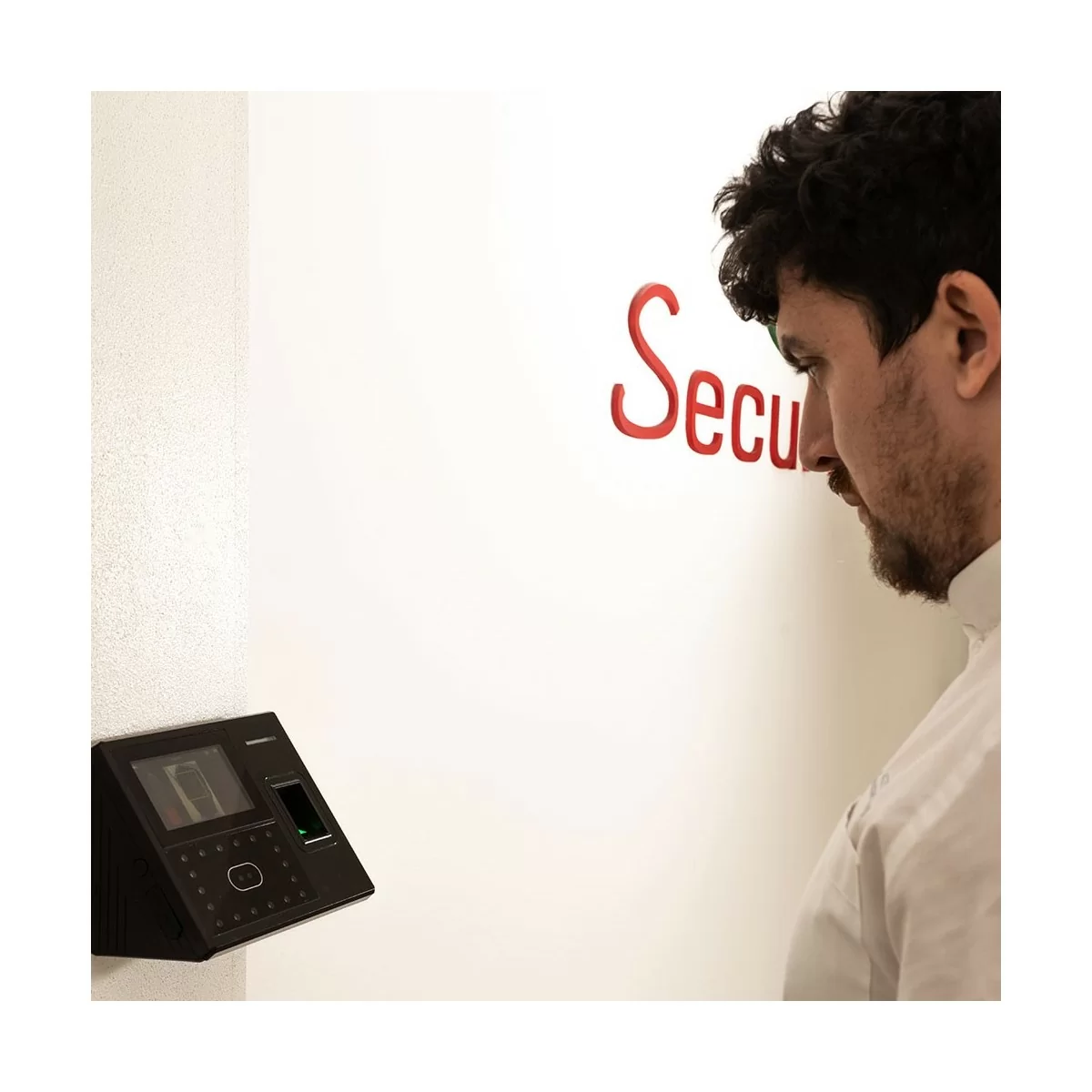

Employees record entries and exits simply through the automatic identification of their face, by placing RFID cards near the device or by using their fingerprint.
Essential specifications
- Cameras for Facial Recognition
- Fingerprint biometric optical reader
- RFID Card reader
- Backlit LCD Touch display with menu in Italian
- User recognition time under 1 second
- Voice confirmation of operations in Italian and English
- Data download via LAN network, Wi-Fi or USB memory
- Registers up to 10,000 users, 4,000 fingerprints and 3,000 faces
- Stores up to 100,000 access events
- Automatic daylight saving time / standard time change
- Door-opening access control with “Time Zone” function
- “Justification” function available for entry and exit
- Power supply: 12Vdc 1A
- Temperature: from 0 to 45°C - Humidity: from 20 to 80% without condensation, indoor use
- Dimensions: 194 (W)×165 (H)×111 (D) mm. Weight: 400 g.
- 24-month warranty
Standard equipment
- iAccess Time Studio management software
- 2 Neutral RFID cards
- Metal bracket and wall plugs for wall mounting
- Relay to open the door or activate a siren
- LAN and Wi-Fi LAN network card
- Rechargeable backup battery
- USB memory port
- Wiegand communication port
- 220Vac – 12Vdc power supply
Time Studio Software
Included with the purchase of the time clock, Time Studio software can be a memorable solution for employee attendance management.
Report management is accessible thanks to a simple and intuitive interface, with which you can acquire and monitor the entries and exits of each individual employee or an entire department in just a few steps.
- User Recognition
- Face recognition
- Protection
- For Indoors
- Number of registered users
- 10.000 (of which 4000 fingerprints and 3000 faces)
- Number of recordable passes
- 100.000
