iAccess ScanPASS FAST
Access Control
Prezzo: €1,099.00
06IA0SP38
In stock
- Spedizione: Corriere Espresso - 24/48 h.
- Ordina entro le 15:00 e spediamo in giornata!
What is iAccess ScanPASS?
ScanPASS FAST is an advanced access control and people counting system, designed for environments with a high flow of visitors.

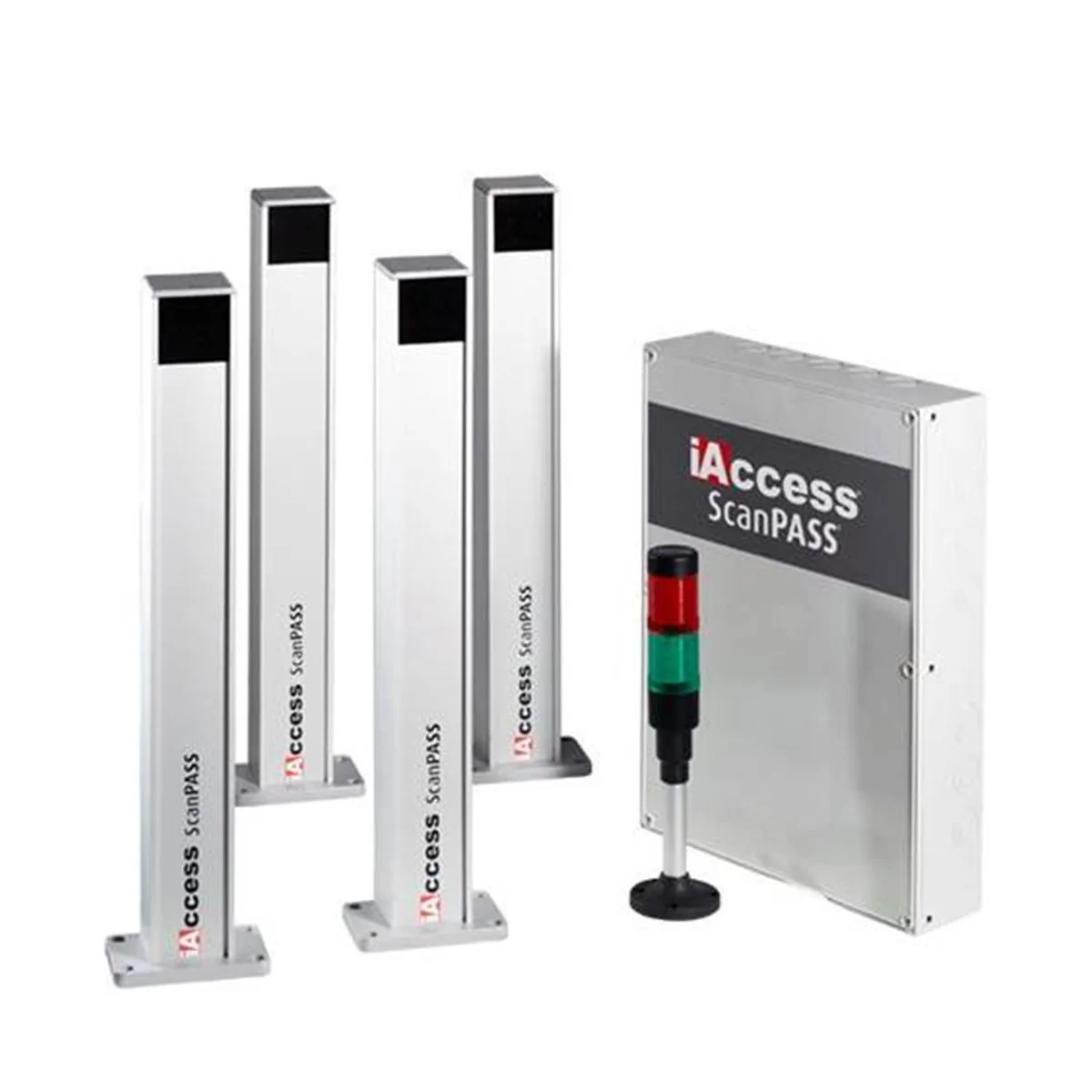

The system consists of photocells to monitor people entering and exiting, an enhanced control unit and dedicated software that manages communication via data network. A traffic light indicator shows when the store or area is empty or full, optimizing visitor flow and ensuring safety.
The ScanPASS FAST kit includes a control unit with a more powerful CPU, ideal for managing areas with high visitor traffic while ensuring high performance and immediate response.
iAccess ScanPASS FAST can be widely used in:
- Stores
- Banks
- Shopping centers
- Restaurants
- Public venues
- Museums
Manage the people limit inside your business!
Real-time access monitoring
Thanks to the included software, it is possible to monitor the movement of people in real time from a PC and receive visual and acoustic alerts in case of overcrowding.
Visual alert for real-time area control
Thanks to the visual indicators installed at the entrances and used to manage access, it is possible to achieve efficient occupancy control of indoor areas.
Key Specifications
- Input power supply: 220Vac
- Control unit dimensions: 400 x 300 x 80 mm
- Column dimensions: 60 x 60 x 500 mm
- Junction box for INPUT / OUTPUT connection
- Photocell pairs must be installed at a minimum distance of at least 40/50 cm
- No. 1 LAN RJ45 10/100
- No. 2 Digital Input
- No. 2 Digital Output (NO / NC)
- Operating temperature: from 0°C to 45°C
- 2-year warranty
- Humidity < 85%
- Indoor use
Control Electronics
- 2 pairs of photocells to detect people passing through
- 1 control unit connectable to the data network via LAN cable
- 1 software license to install on Windows OS
- 1 traffic light indicator
How do I install ScanPASS FAST?
ScanPASS FAST is an indoor system. Each kit, consisting of photocells, control unit and alert traffic light, can be installed near the entrances of the premises and each kit can be connected to the centralized management software. Identify where to position the photocells used to detect people passing through and connect the management control unit to the data network.
What type of controls can I perform?
Simple installation and immediate use:
- Detection of the number of people inside indoor areas
- Waiting signal at the entrance when the number of people inside the area reaches the set threshold.
ScanPASS Software
Thanks to the included software, it is possible to monitor the movement of people in real time from a PC and receive visual and acoustic alerts in case of overcrowding
ScanPASS Software
Thanks to the included software, it is possible to monitor the movement of people in real time from a PC and receive visual and acoustic alerts in case of overcrowding
