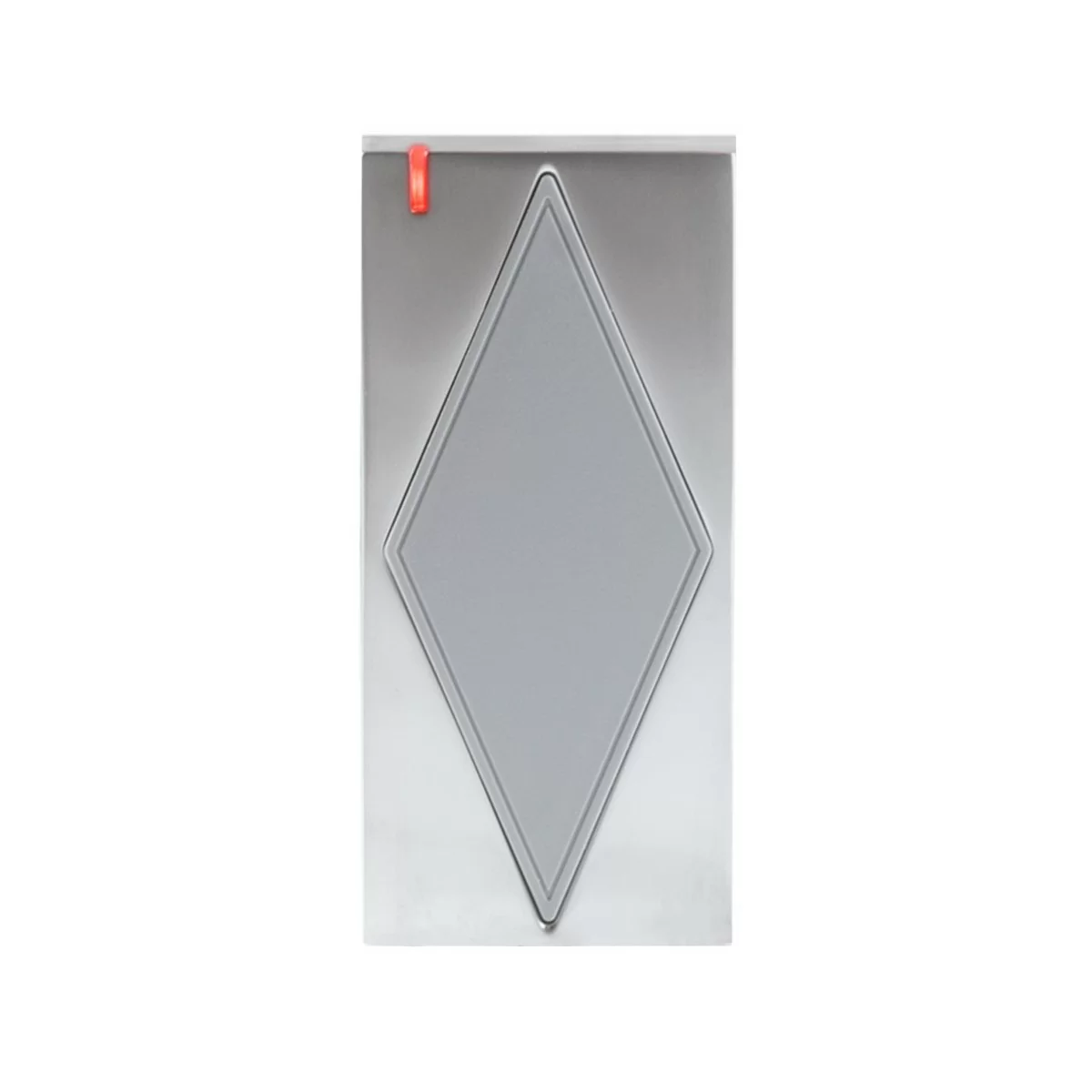

Outdoor Wiegand Reader | iAccess W1-R
Outdoor Wiegand Reader | iAccess W1-R
Outdoor Wiegand Reader | iAccess W1-R
Outdoor Wiegand Reader | iAccess W1-R

iAccess W1-R

Wiegand Reader for Outdoor Use

Prezzo: €69.00
Prezzo scontato: €39.00
06IAM141R
In stock
Trustpilot
Quantity:

  • Spedizione: Corriere Espresso - 24/48 h.
  • Ordina entro le 15:00 e spediamo in giornata!

What is iAccess W1-R?

iAccess W1-R is an RFID reader device that uses Wiegand communication technology.
Once connected to the SC-013 or SC-022 security modules, it acts as an access management system for restricted areas or private environments, ensuring security and control.

Thanks to its ability to communicate through the Wiegand 26 protocol, iAccess W1-R can establish connections with other iAccess devices.

iAccess W1-R
Request Information

It does not include a door opener relay and does NOT store users’ access times

The basic warranty is 2 years

How do I install and configure W1-R?

iAccess W1-R

Installing and setting up the iAccess W1-R reader is simple and intuitive: simply mount the device on the wall and carefully follow the detailed instructions provided in the installation guide to have the system ready to use.

Request Information
iAccess W1-R
iAccess W1-R

Why buy iAccess W1-R?

iAccess W1-R

The W1-R reader features integrated Wiegand 26 communication which, combined with an iAccess door opener module, enables access through an RFID badge, making gate opening a simple and direct process.
The W1-R reader is a terminal that is:

  • Extremely reliable
  • Durable

It guarantees the highest level of protection for restricted areas.

Essential specifications

  • RFID card or key fob reader
  • Integrated 26-bit Wiegand controller
  • Dimensions 103x48x19 HxWxD mm
  • Weight: 500 g.
  • Vandal-resistant metal casing
  • Power supply voltage: DC12V/24V
  • Temperature: from -40 to 60°C

Standard equipment

  • iAccess W1-R device
  • Optional 12Vdc power supply
User recognition time
less than 0,5 seconds
User Recognition
With RFID Badge
Integrated Web Server
Si
Protection
For Outdoors
User Management
None
Communication
Wiegand 26
Display
No
Voice Synthesis
No
Download Data
No
Number of registered users
2000
Number of recordable passes
50000
Buffer battery for data storage
No
Automatic change of entries / exits
Si
Automatic change of day / legal time
Si
Time Zone function
Si
Siren Start / End of Worktime
Si
Work Code function
Si
Power Supply 220 V
DC12V
Power supply
Da 12V OPZIONALE
Operating environment
Indoor / Outdoor
Dimensions
50x124x34,5 mm. (LxAxP)
Warranty
2 years

Depliant W1-R

- (804.45KB)

Conformità Controllo Accessi

- (175.75KB)
