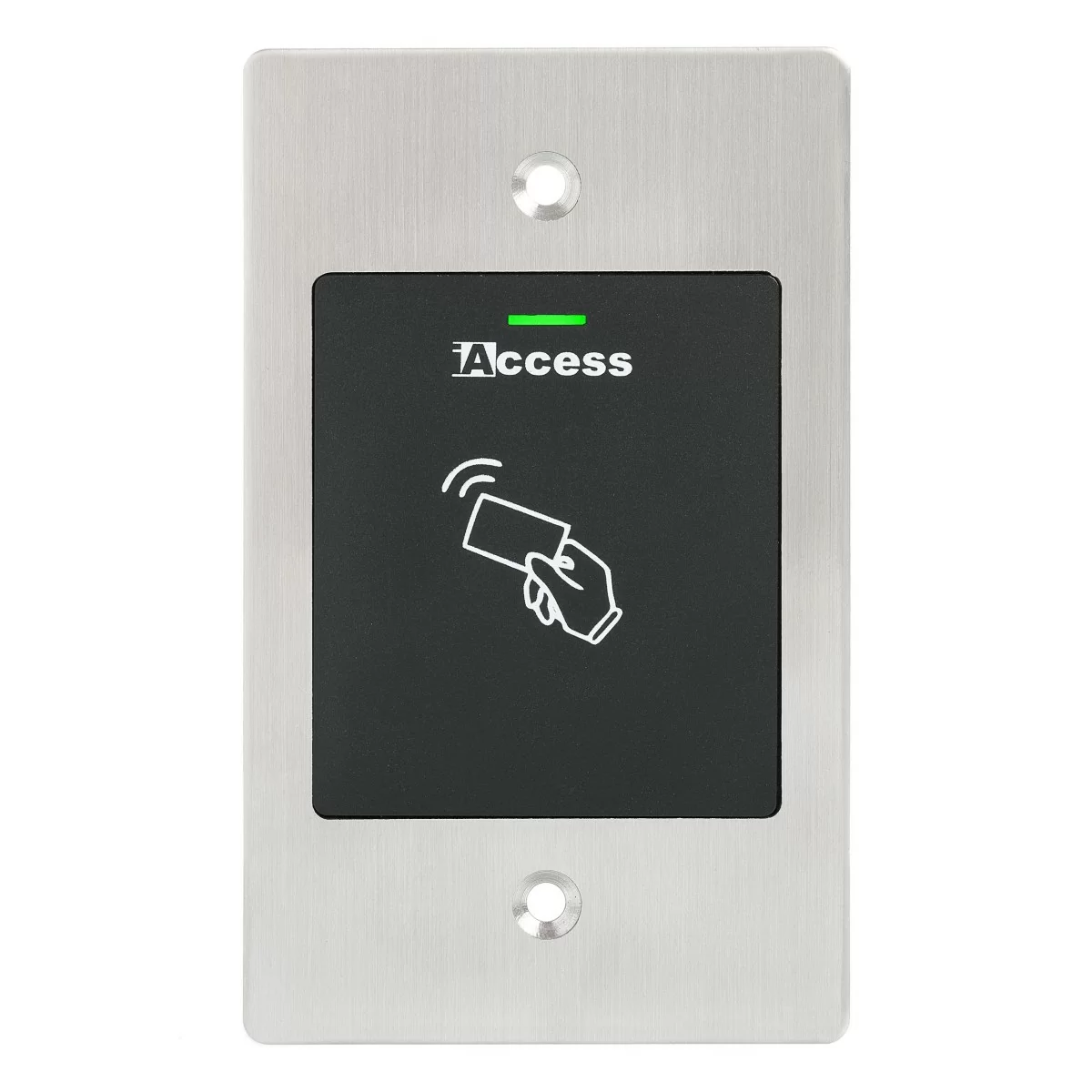

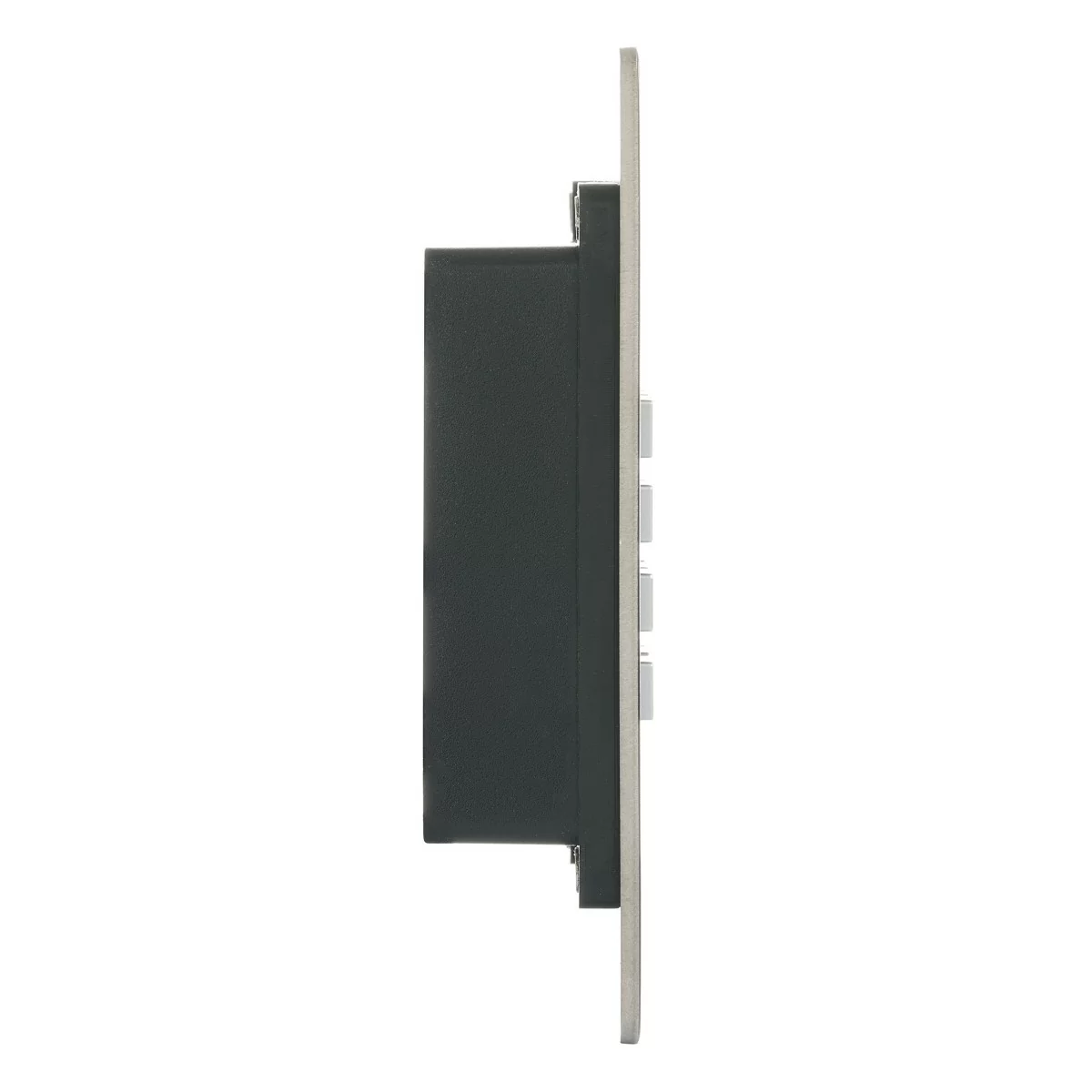

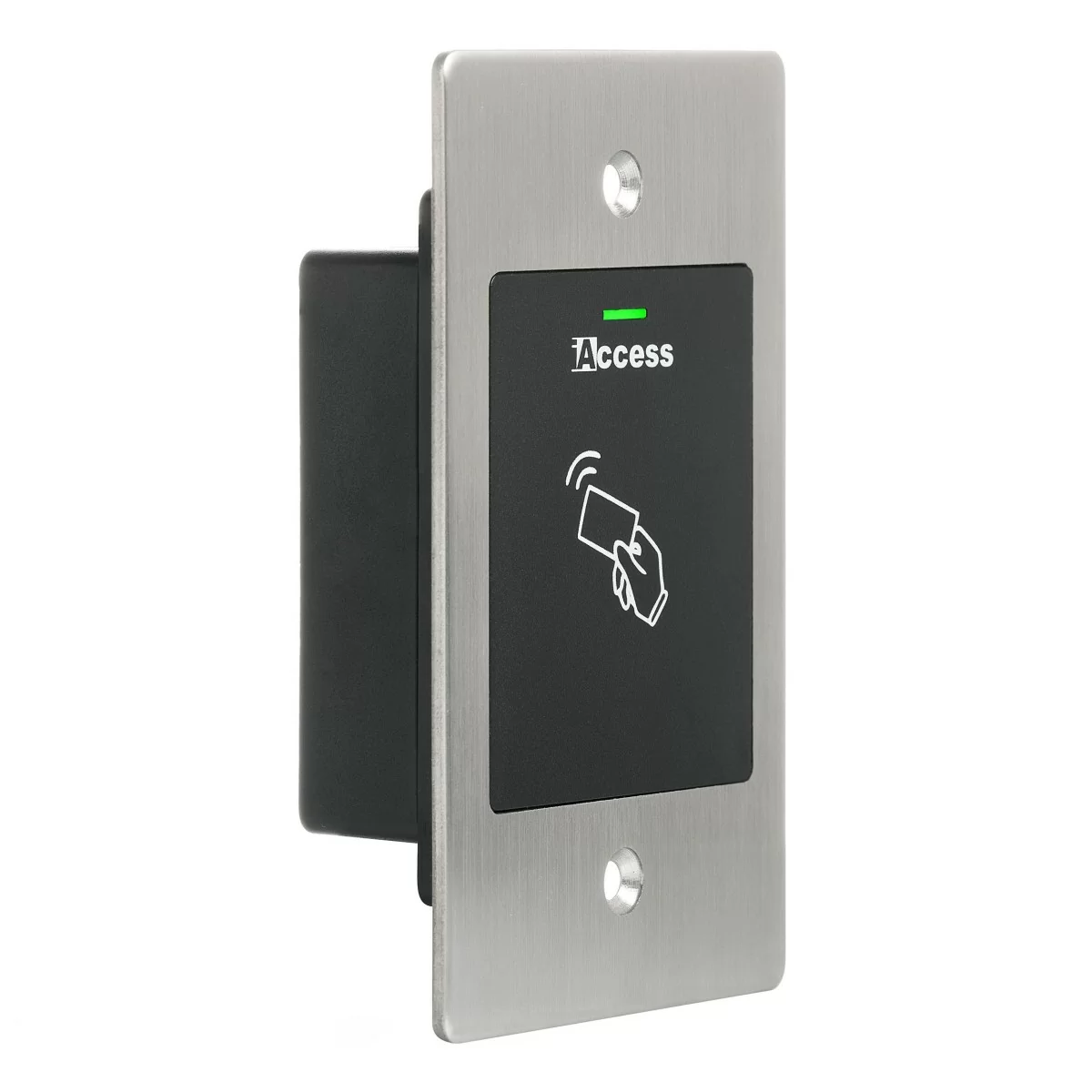

iAccess MX-E
Flush-Mount Door Opener
Prezzo: €99.00
Prezzo scontato: €49.00
06IAMX00E
In stock
- Spedizione: Corriere Espresso - 24/48 h.
- Ordina entro le 15:00 e spediamo in giornata!
What is iAccess MX-E?
iAccess MX-E is a professional access control system compatible with flush-mount installation inside a universal 503 box.
It allows automatic opening of the entrance door simply by placing RFID transponders, either cards or key fobs, near the device.
It also features Wiegand communication, allowing it to be used as an auxiliary reader connected to devices with Wiegand input or output.
Thanks to its specific structure, it is also suitable for outdoor use with an IP66 protection rating.
It does not include software and does NOT store user access times
Product Warranty: standard warranty is 2 years
How do I install and configure MX-E?
Compatible with the universal vertical 503 box, iAccess MX-E must be powered by electricity after wall installation.
With an IP66 protection rating, the Access Control device can also be installed outdoors.
By following a few quick steps, it will be possible to connect the device to the access point via Wiegand connection.
Why choose MX-E?
iAccess MX-E is an access control system designed to ensure security and protect specific environments such as:
- Private homes
- Offices
- Outdoor gates
In this way, it is possible to ensure that only authorized people have access to specific areas.
Key Specifications
- RFID card or key fob reader
- Stores up to 2000 users
- Compatible with universal 503 box
- Single integrated door release relay
- 26-bit Wiegand IN and OUT controller
- User recognition time: 1 sec
- Dimensions 115x70x25 HxWxD mm
- Flush-mount dimensions 84x62x22 mm
- Power supply: DC12V (Power supply NOT INCLUDED)
- Temperature: from -40 to 60°C
Standard Equipment
- MX-E device
- User recognition time
- less than 0,5 seconds
- User Recognition
- With RFID Badge
- Integrated Web Server
- Si
- Protection
- For Outdoors
- User Management
- None
- Communication
- Wiegand 26
- Display
- No
- Voice Synthesis
- No
- Download Data
- No
- Number of registered users
- 2000
- Number of recordable passes
- 50000
- Buffer battery for data storage
- No
- Automatic change of entries / exits
- Si
- Automatic change of day / legal time
- Si
- Time Zone function
- Si
- Siren Start / End of Worktime
- Si
- Work Code function
- Si
- Power Supply 220 V
- DC12V
- Power supply
- Da 12Vcc (Alimentatore NON INCLUSO)
- Operating environment
- Indoor / Outdoor
- Dimensions
- 50x124x34,5 mm. (LxAxP)
- Warranty
- 2 years
