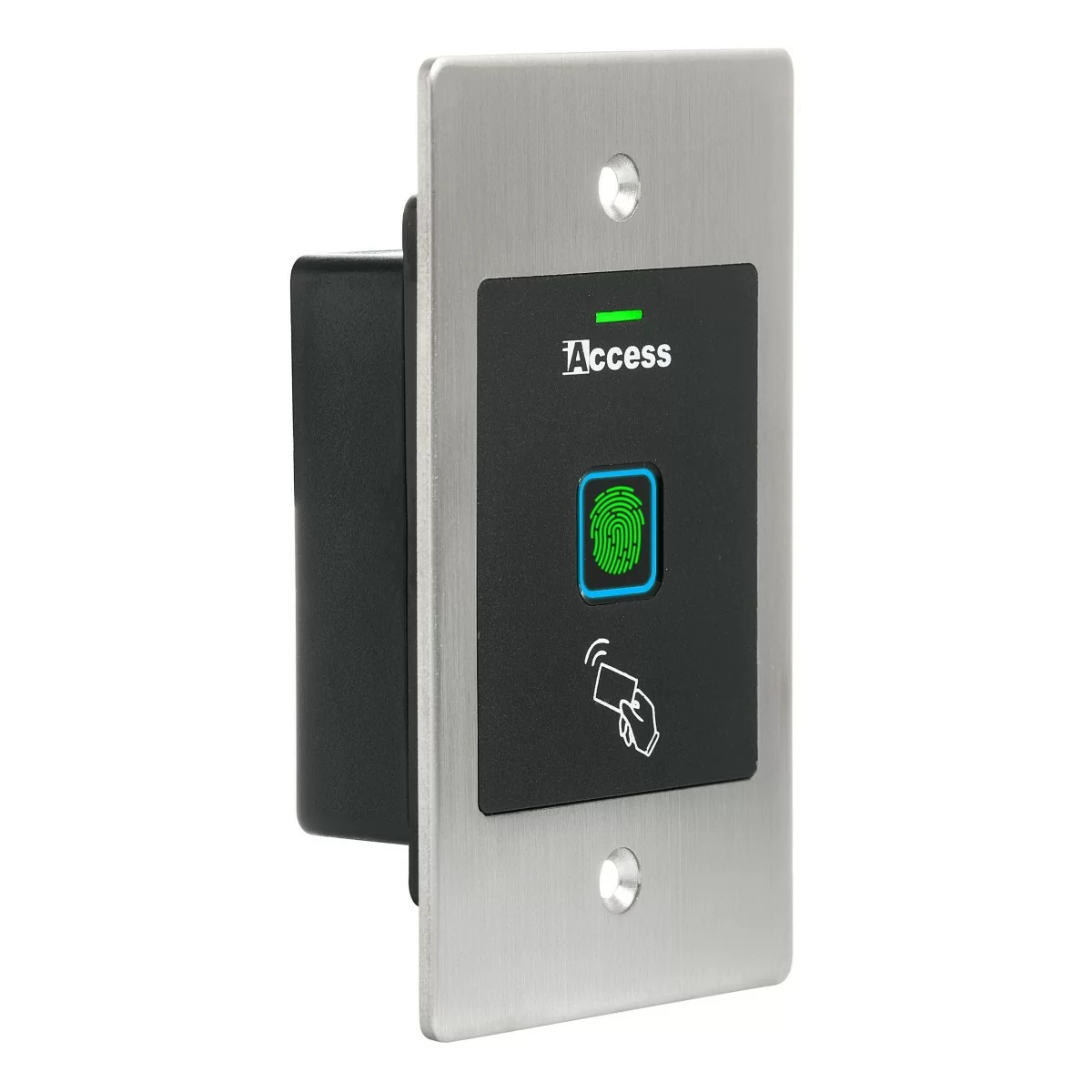

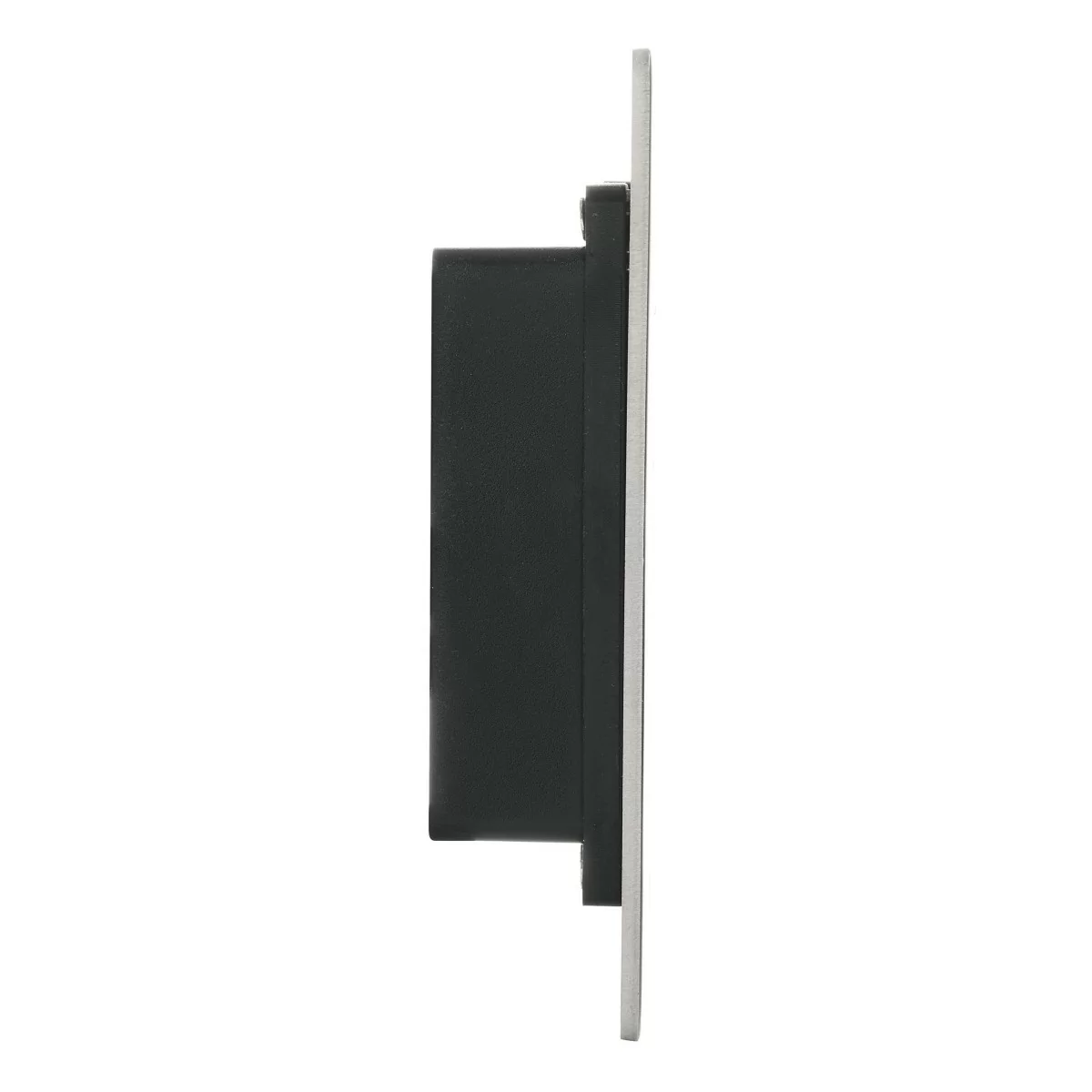

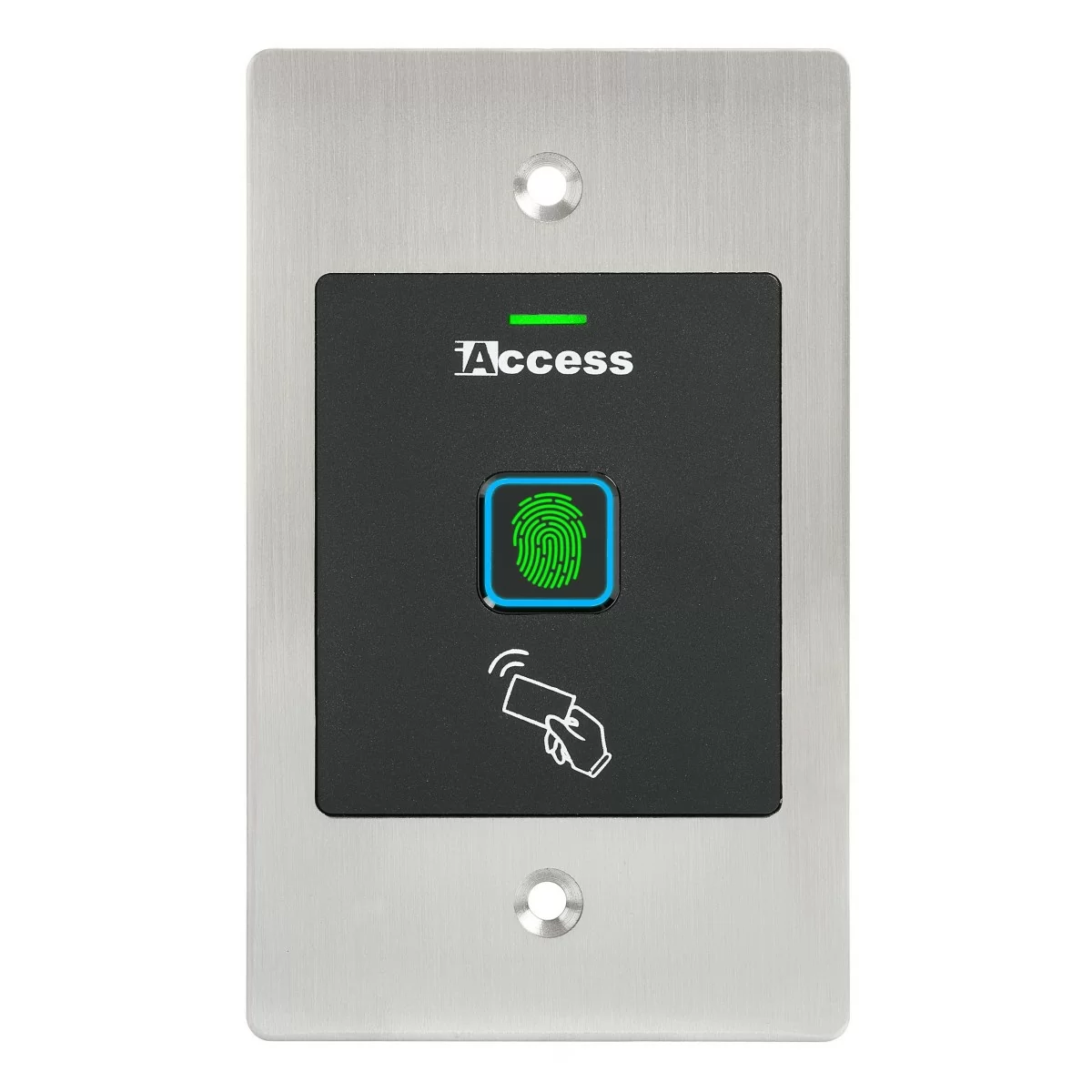

Flush-Mount Door Opener iAccess M7-E Biometric RFID
Flush-Mount Door Opener iAccess M7-E Biometric RFID
Flush-Mount Door Opener iAccess M7-E Biometric RFID
Flush-Mount Door Opener iAccess M7-E Biometric RFID

iAccess M7-E

Flush-Mount Door Opener

Prezzo: €159.00
Prezzo scontato: €69.00
06IAMM07E
In stock
Trustpilot
Quantity:

  • Spedizione: Corriere Espresso - 24/48 h.
  • Ordina entro le 15:00 e spediamo in giornata!

What is iAccess M7-E?

iAccess M7-E is a professional access control system compatible with flush-mount installation inside a universal 503 box.

It allows automatic door opening simply by placing RFID transponders near the device or by using the user’s fingerprint.
It also features Wiegand communication, allowing it to be used as an auxiliary reader connected to devices with Wiegand input or output.

iAccess M7-E
Request Information

It does not include software and does NOT store user access times

Product Warranty: standard warranty is 2 years

How do I install and configure M7-E?

iAccess M7-E

Compatible with the universal 503 box, iAccess M7-E must be powered by electricity after wall installation.
With an IP66 protection rating, the Access Control device can also be installed outdoors.
By following a few quick steps, it will be possible to connect through:

  • Fingerprint
  • RFID transponder
  • Wiegand connection
Request Information
iAccess M7-E
iAccess M7-E

Why choose iAccess M7-E?

iAccess M7-E

iAccess M7-E is an access control system designed to ensure security and protect specific environments such as:

  • Companies
  • Offices
  • Public institutions

In this way, it is possible to ensure that only authorized people have access to specific areas.

Key Specifications

  • RFID card or key fob reader
  • Biometric fingerprint reader
  • Stores up to 500 PINs and 500 RFID users
  • Compatible with universal 503 box
  • Single integrated door release relay
  • 26-bit Wiegand IN and OUT controller
  • User recognition time: 1 sec
  • 12 Vdc power supply (Power supply NOT INCLUDED)
  • Dimensions 115x70x25 HxWxD mm
  • Power supply voltage: DC12V
  • Temperature: from -40 to 60°C

Standard Equipment

  • M7-E door opener
User recognition time
less than 0,5 seconds
User Recognition
Con impronte o Tessere RFID 125 KHz
Integrated Web Server
No
Protection
Anti- vandal
User Management
None
Communication
Wiegand 26
Display
No
Voice Synthesis
No
Download Data
None
Number of registered users
500 fingerprint and 500 Rfid
Number of recordable passes
100.000
Buffer battery for data storage
No
Automatic change of entries / exits
No
Automatic change of day / legal time
No
Time Zone function
No
Siren Start / End of Worktime
No
Work Code function
No
Power supply
Da 12Vcc (Alimentatore NON INCLUSO)
Operating environment
Outdoor
Dimensions
132 x 54 x 22 mm. (A x L x P)
Warranty
2 years
