For access control,  guiding visitors and passage into secured areas, VX-Pass retractable gates are an ideal solution for the rapid passages of persons when low-to-medium security is required. It can be perfectly adapted to the desired use, as:

• School
• Public authority
• Gyms
• Entertainment parks
• Water parks
• Hotels
• Events and concerts;

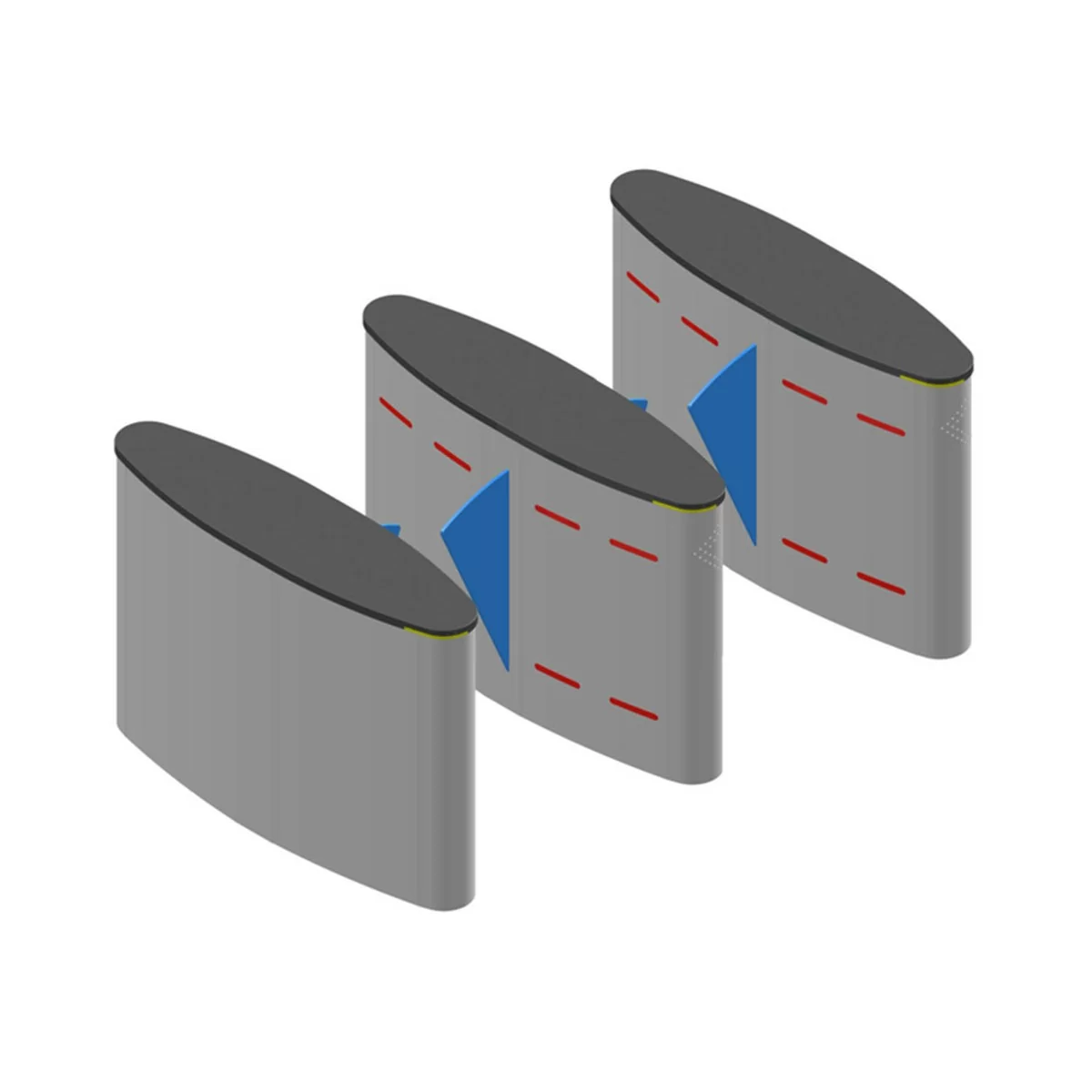

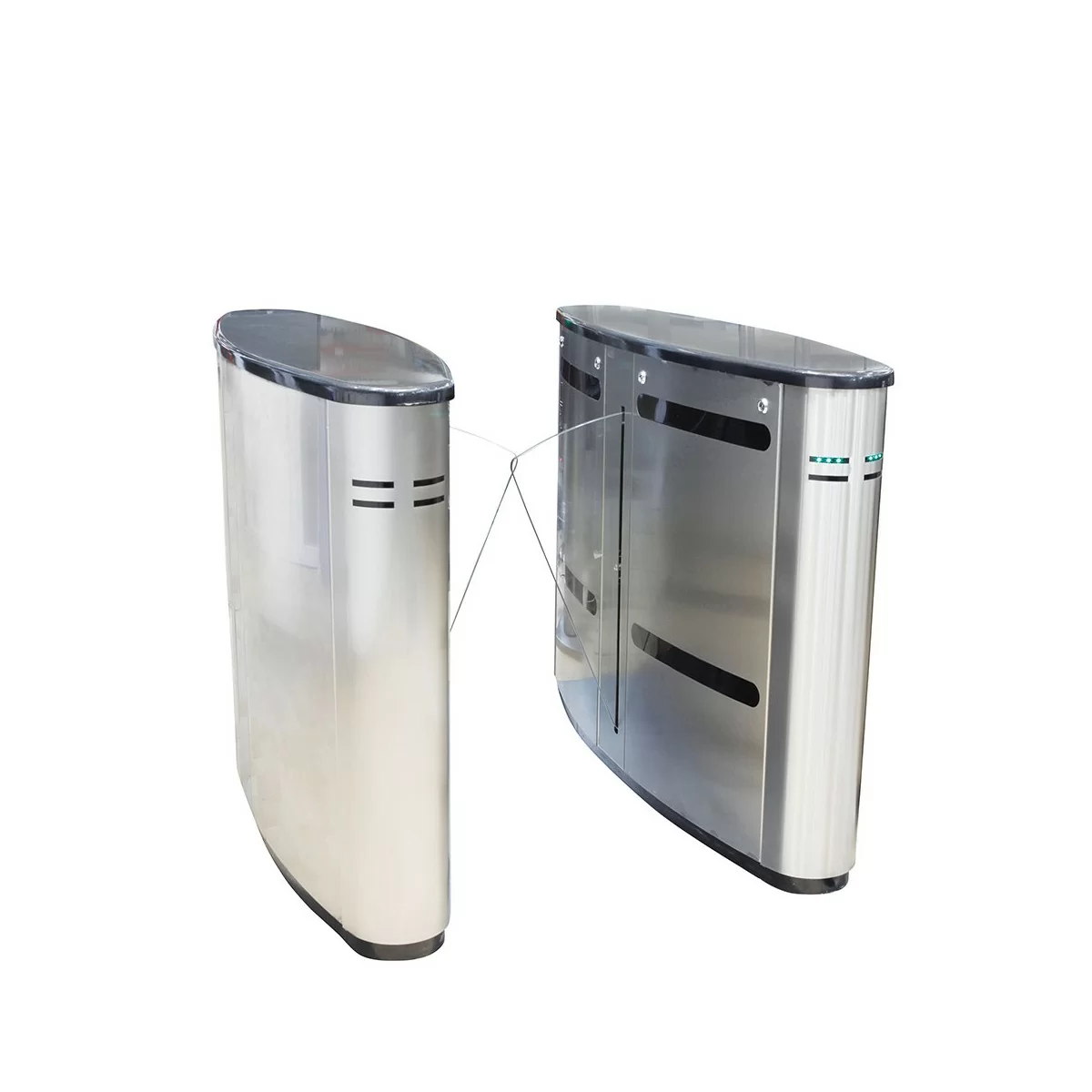

VX-PASS is a lineal motorized barrier made of stainless steel and high resistance transparent plexiglass.
It is particularly elegant and able to make any passage or entrance pleasant and safe.

As an optional, openings with a width of 80 cm are available for disabled people in wheelchairs.

VX-PASS sliding gate is an access control composed of wing elements, polycarbonate panels with a sensitive impact detection witch ensure maximum personal safety. The barriers close automatically after passage.

Technical Features

• Transit Speed: 30 people / minute
• Power supply: 220V 50Hz, single-phase
• Voltage: 24Vdc - Power: 140W
• Protection level: IP55 - IP65
• Led indicators with traffic light indication
