Open Door Module SC-012
Open Door Module SC-012
Open Door Module SC-012
Open Door Module SC-012
Open Door Module SC-012

Open Door Module SC-012

Testo da inserire nella definizione del Nome del Prodotto ( Testo1 | Testo2 )

Prezzo: €55.00
06IASB013
In stock
Trustpilot
Quantity:

  • Spedizione: Corriere Espresso - 24/48 h.
  • Ordina entro le 15:00 e spediamo in giornata!

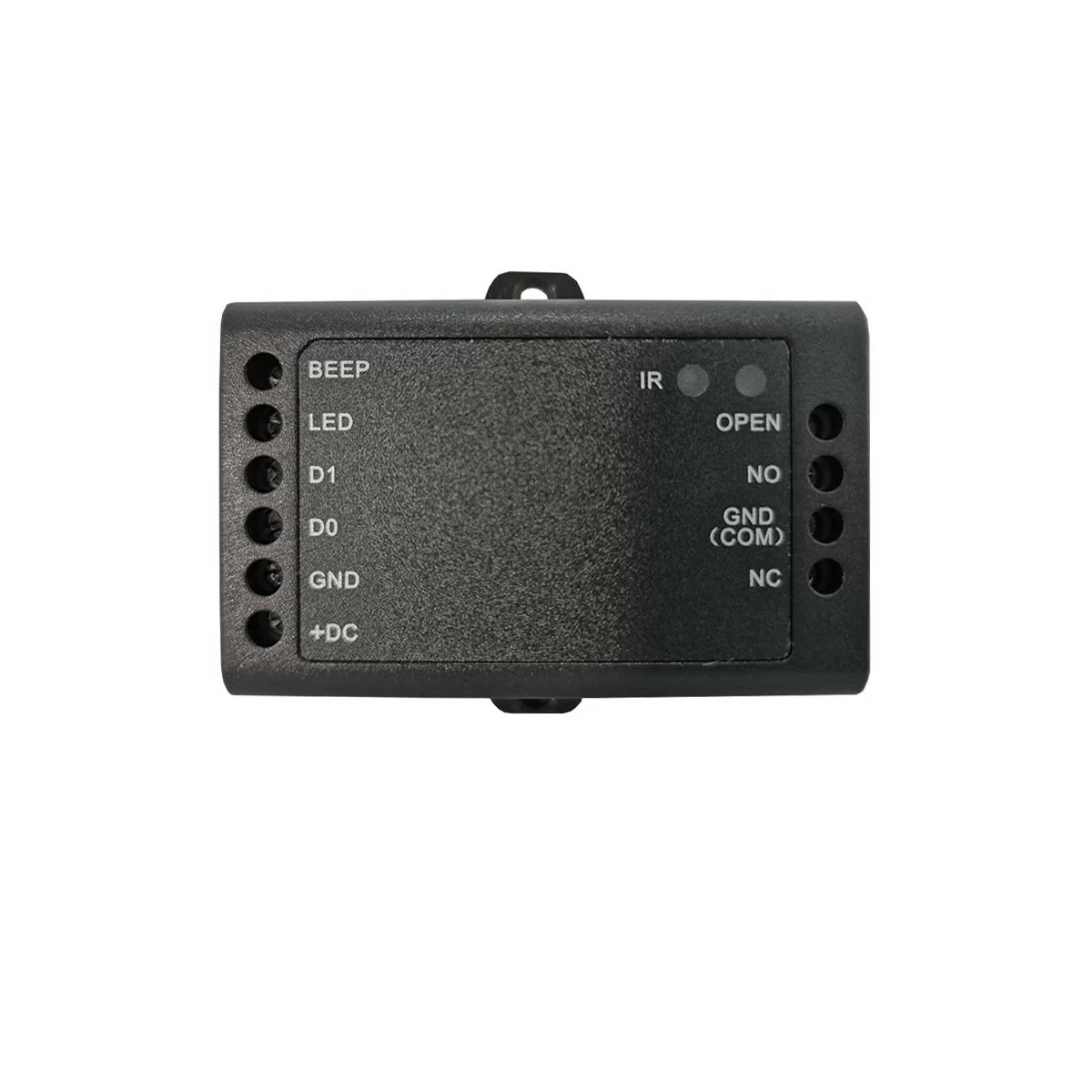

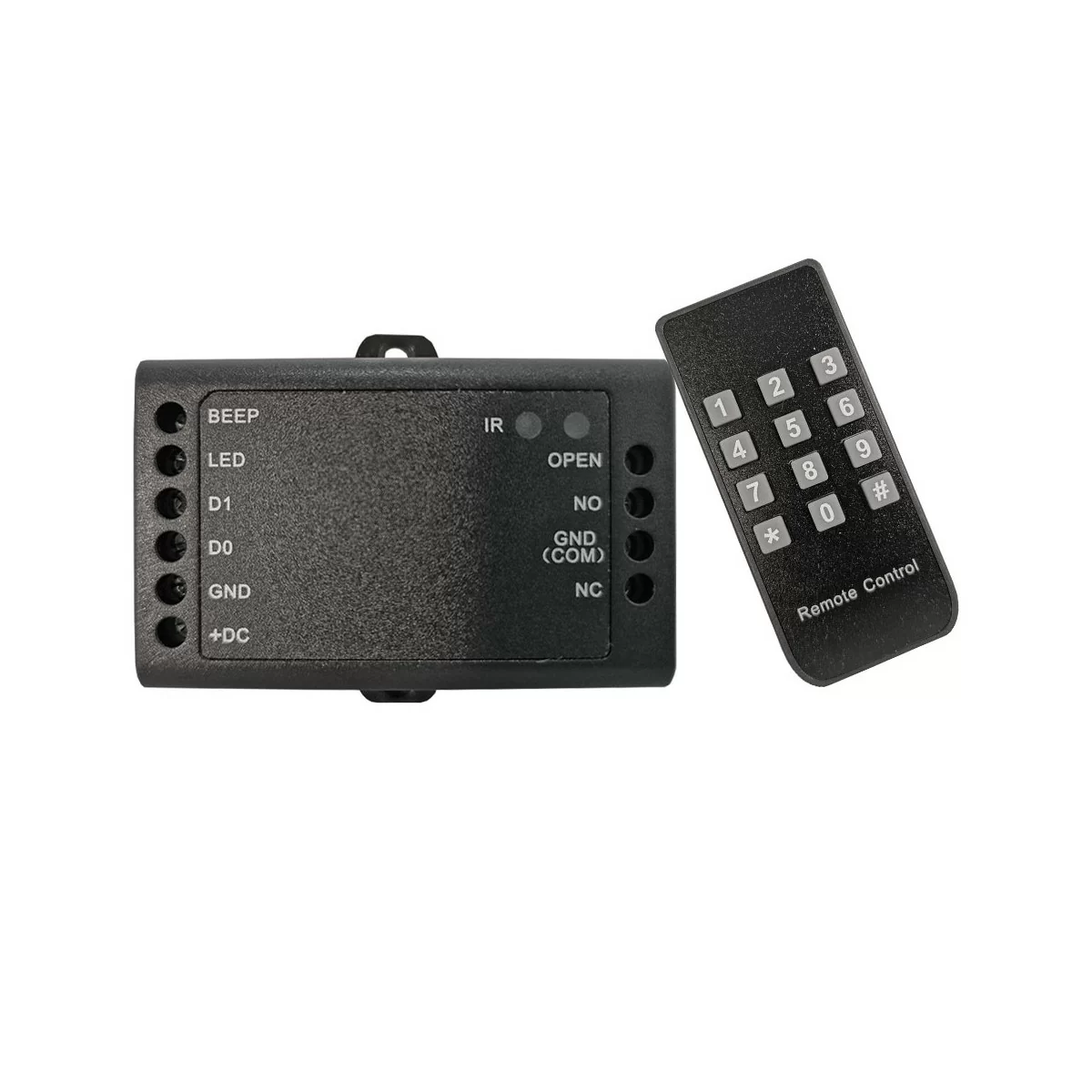

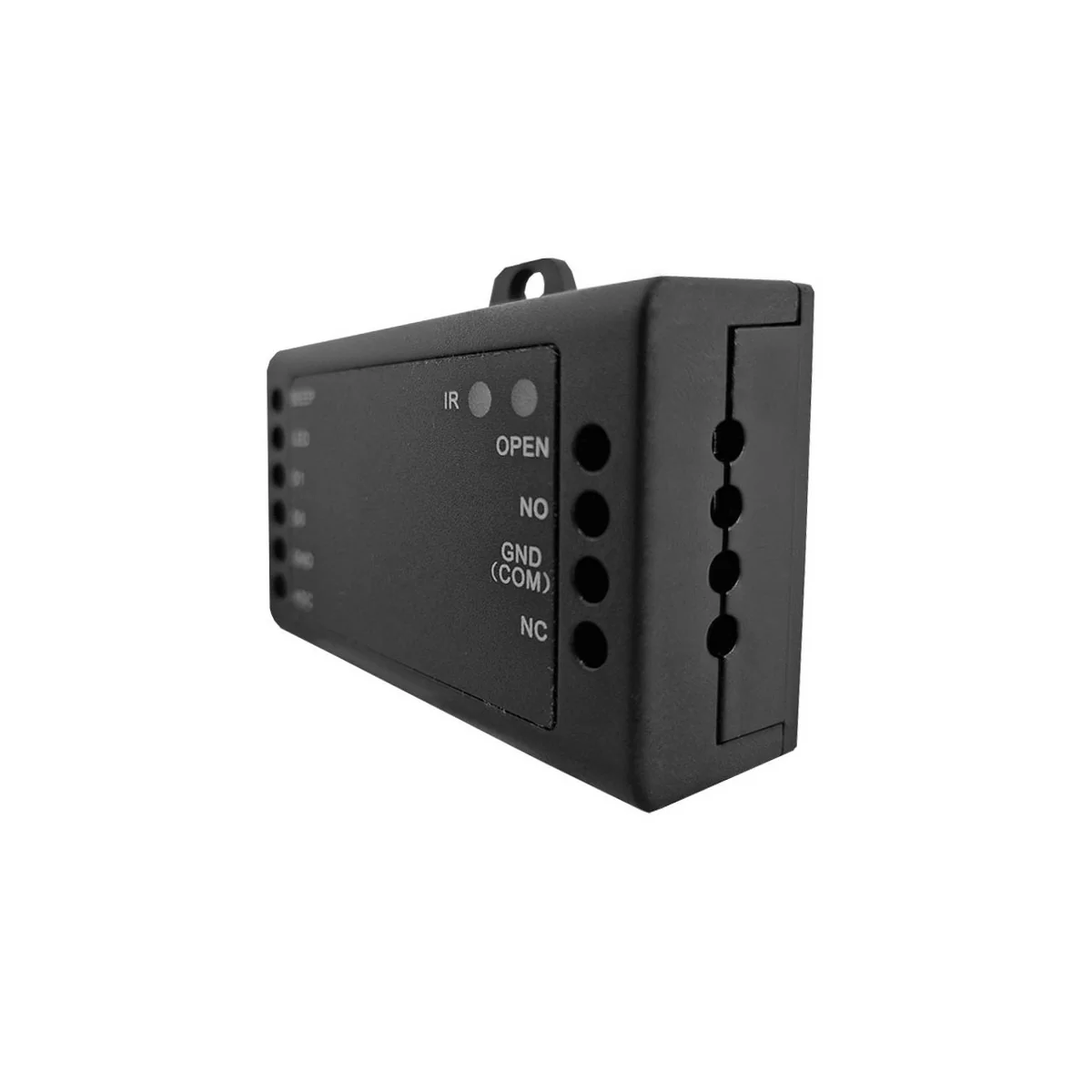

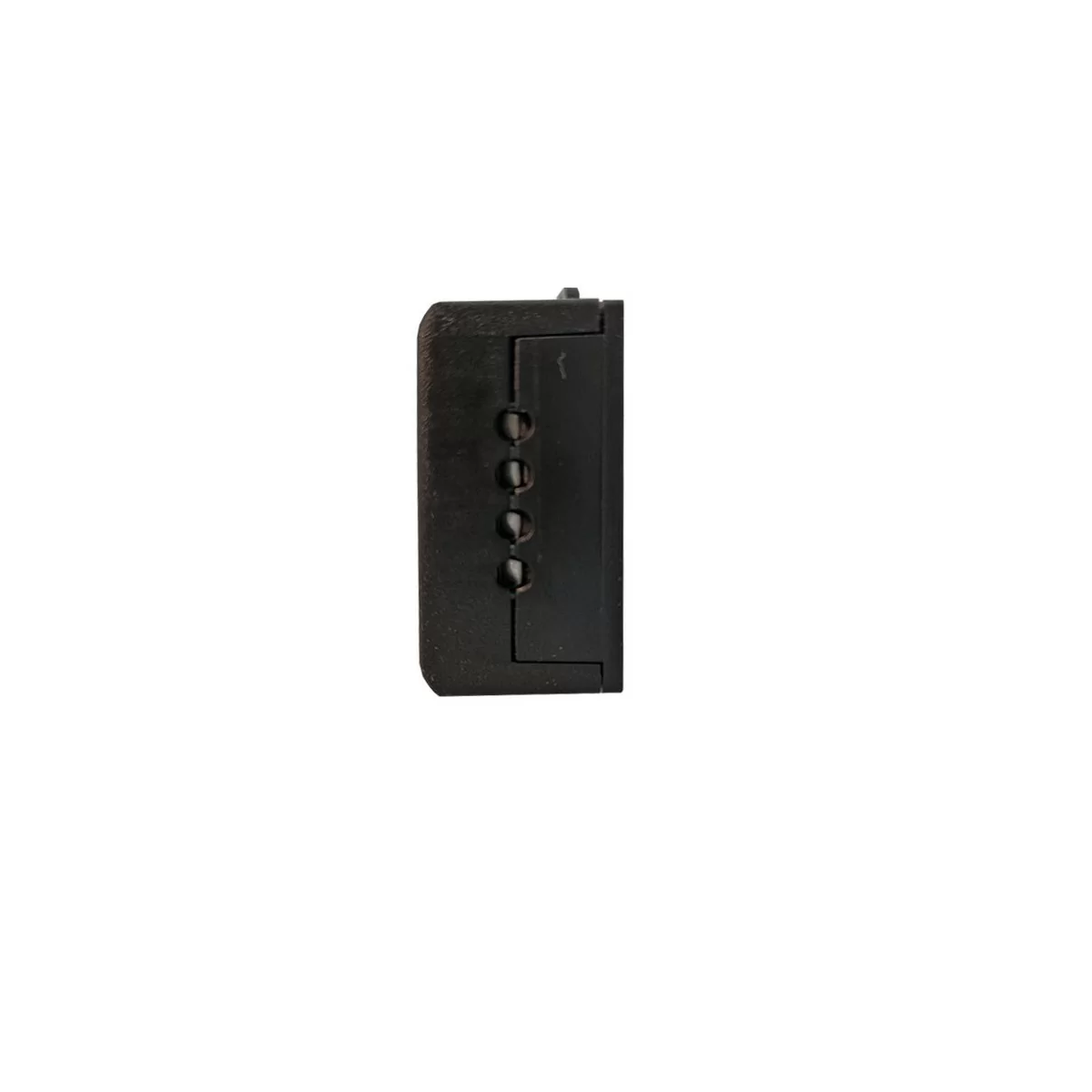

iAccess Security Board SC-012 is a security module that can be interfaced with RFID card readers, keyboards and fingerprint readers equipped with Wiegand out 26-37 bit output. Its purpose is to secure access to your rooms by protecting the locks from any tampering from the outside. Configuration is very simple using the supplied remote control.

ESSENTIAL SPECIFICATIONS
  • Integrated door release relay already powered 12V.
  • Capacity up to 1000 users.
  • Protects the electric lock from external tampering.
  • Compatible with Wiegand out 26˜37 bit devices.
  • Operational in environments with temperatures from -40 ° to 60 ° C and humidity 0-90%.
  • Dimensions: 65x54x19 mm. (WxDxH).
  • 12V DC power supply (power supply not included).
Power Supply 220 V
65x54x19 mm. (LxPxA)
Dimensions
12V DC (alimentatore non incluso)

Manuale iAccess SC-013

- (822.13KB)
