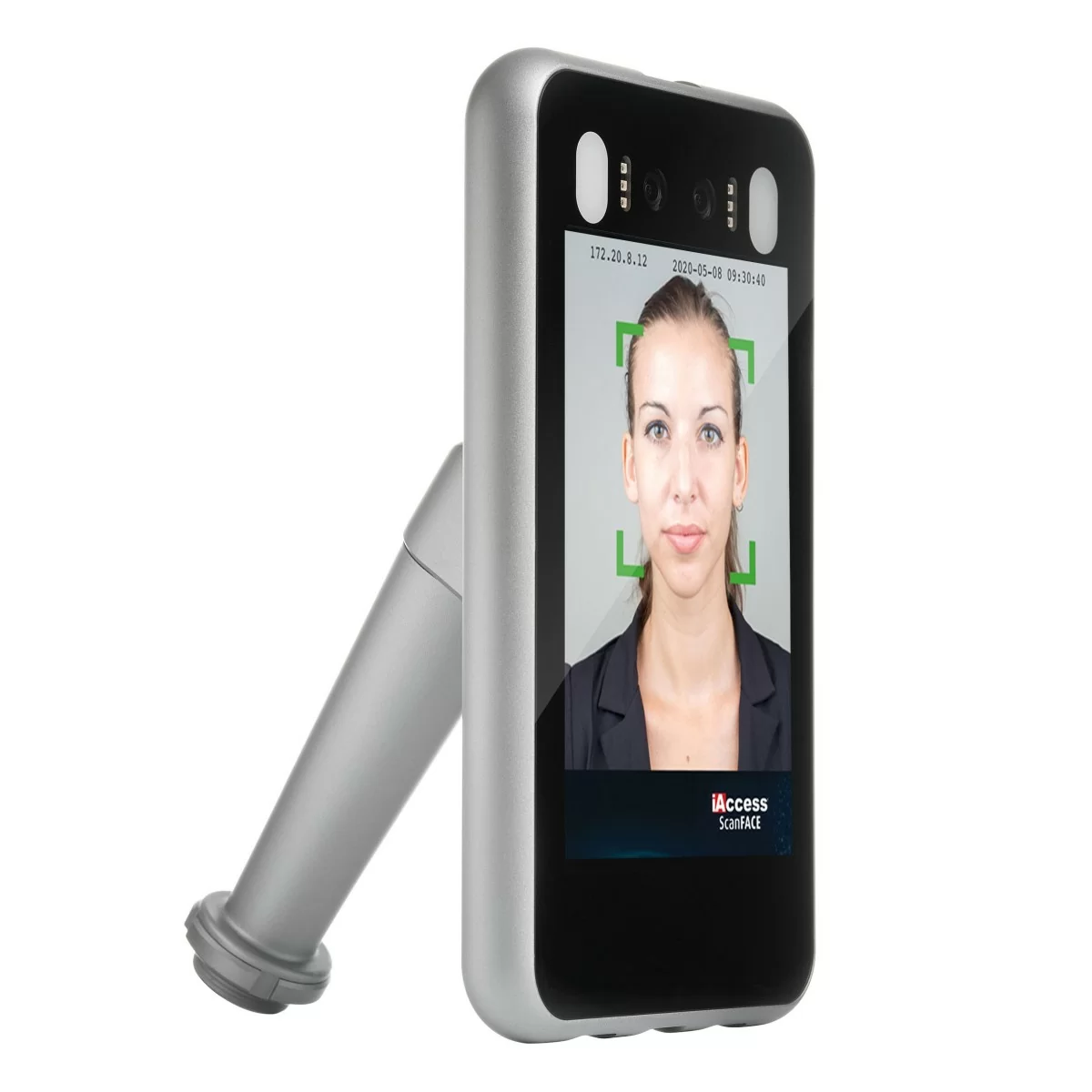

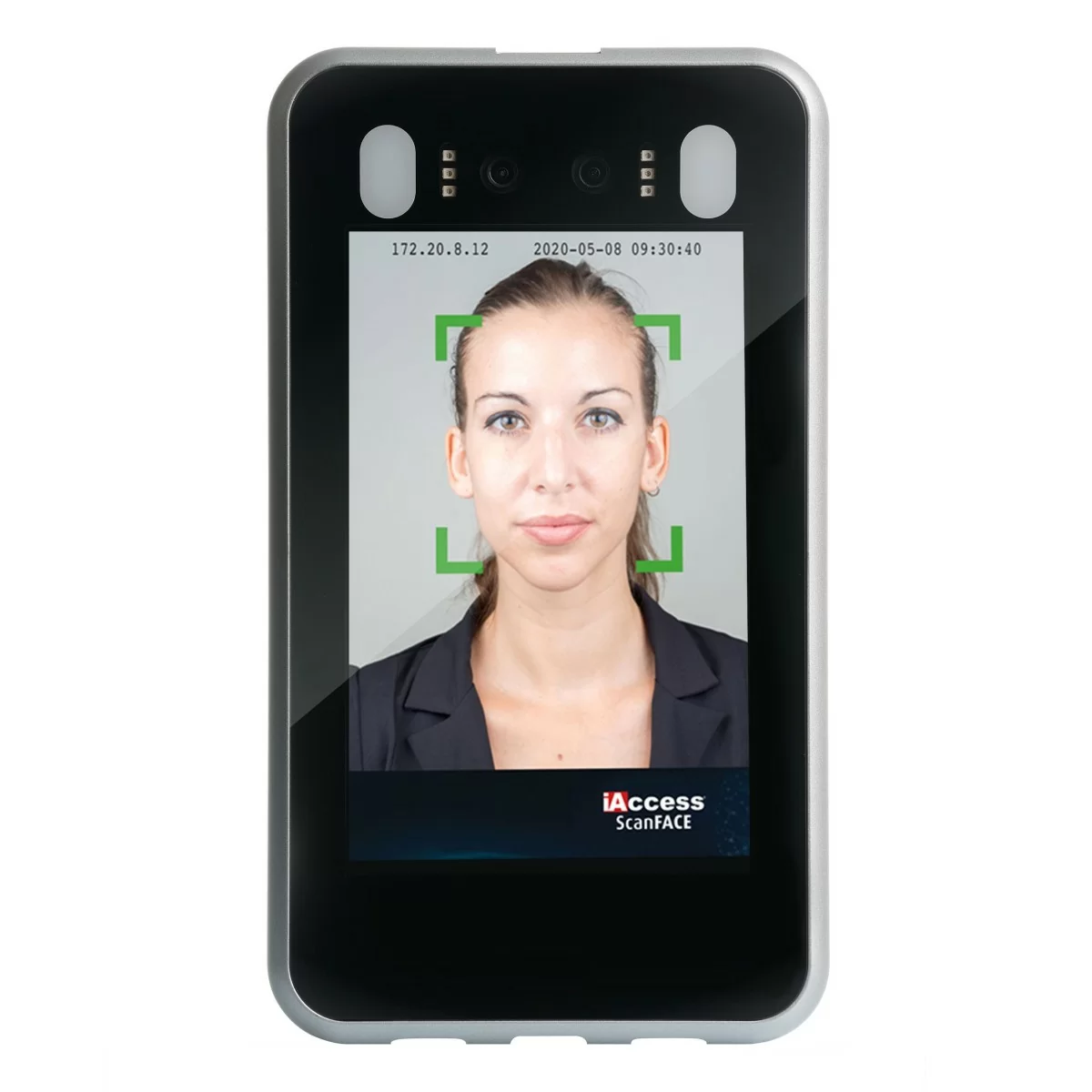

iAccess ScanFACE X
Biometric Terminal
Prezzo: €599.00
Prezzo scontato: €299.00
06IA0SF24
Available in 10 days
What is iAccess ScanFACE X?
ScanFACE X is a multifunction biometric access control terminal with facial recognition and QR code reader.
Thanks to its advanced facial recognition algorithm, after user enrollment, it can be used at the entrance of restricted areas, where only authorized personnel are allowed, such as:
- Workplaces
- Offices and clinics
- Gyms and swimming pools
When a user is not recognized by the algorithm because they are not authorized, door access is denied.
ScanFACE X can validate entries through the booking software VISITAINCLOUD, verifying their validity and denying access when requirements are not met.
Product Warranty: 2 years
How do I install and configure ScanFACE X?

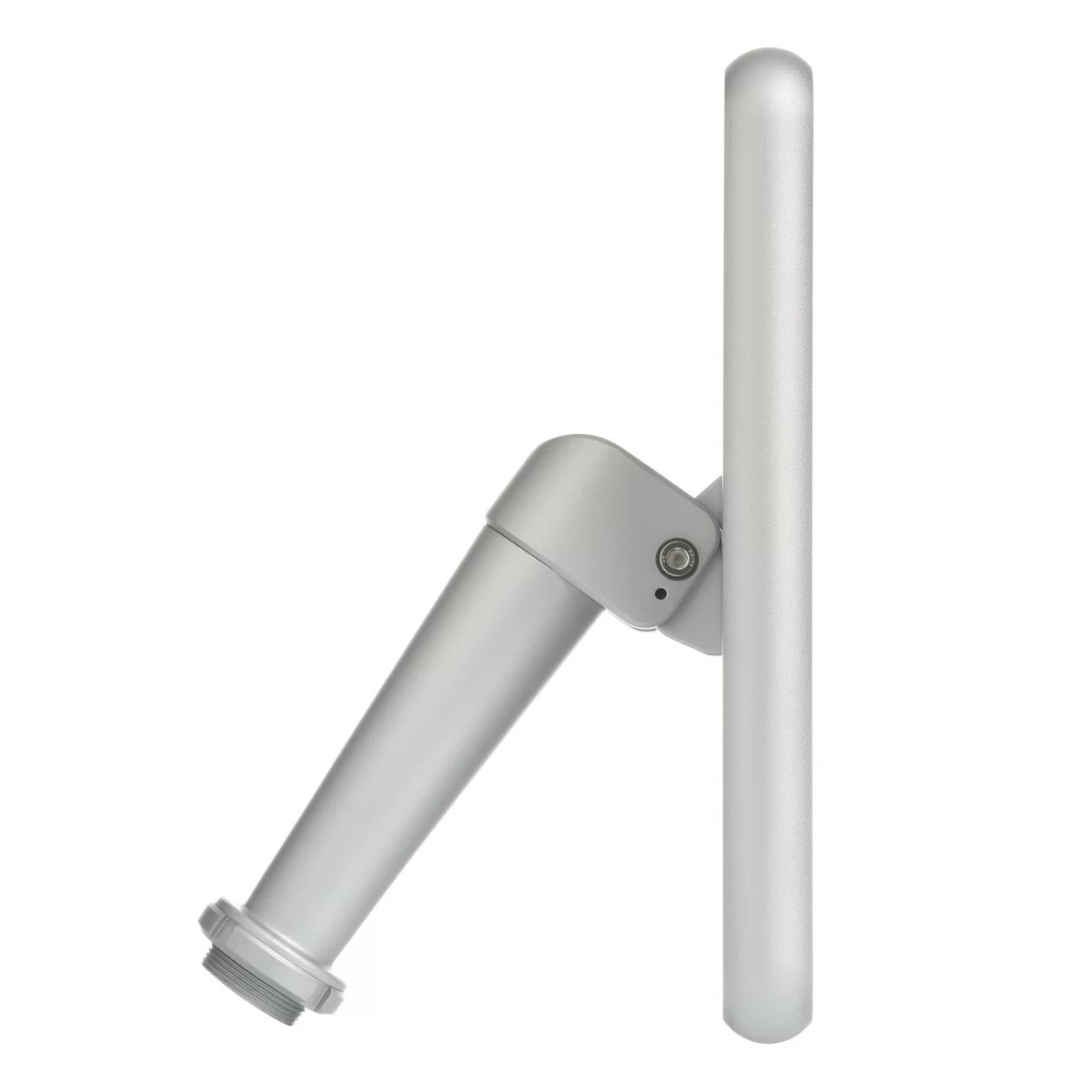

ScanFACE X with tubular bracket is suitable for:
- Turnstiles
- Access gates
- Stands
Simple to install and easy to configure, by following the installation guide, ScanFACE X can be ready to use in just a few steps.
What types of checks can be performed?
You can choose different access control modes:
- Mask detection
- QR code validation for booked access (via VISITAINCLOUD)
- Facial recognition for restricted access (GDPR compliant via integrated web server)
- User recognition via QR code for restricted access and time tracking (coming soon)
- Employee attendance tracking (via TimeStudio®)
FAQ
QUESTION
- What are the advantages of QR code technology?
ANSWER
- QR codes are extremely useful for regulating access in high-traffic areas and are widely applicable in business environments.
Key specifications
- Detection distance: 0.5 – 1.5 m
- Ethernet: 10/100
- Output: 2 relay outputs (normally open)
- Input: 1 digital input
- Mounting bracket: wall or tubular
- Protection rating: IP44 (indoor use)
- Operating temperature: 0°C / +50°C
- Humidity: 5 - 90%
- Power supply: 12Vdc 3.3A
- Power consumption ≤20W
- Dimensions: 273mm x 144mm x 25 mm
- Screen size: 8-inch LCD screen
Standard package
- ScanFACE X device
- Tubular bracket for ScanFACE X/T model
- 12V power supply
- Door relay output (NO contact)
- Wiegand output
- Integrated web server
- Voice alerts in English / Italian
- Download iAccess CMS 9100 Software
- User recognition time
- Default value
- Mask Detection Distance
- 0.5 - 1 m
- Face Recognition Angle
- ≥ 30°
- Optical detection
- Focus 2.8mm, H 117.8 ° V 64.1 ° D 141.9 °
- Integrated Web Server
- Present
- Protection
- IP 44
- User Management
- Via Web Server
- Communication
- LAN
- Display
- 8-inch LCD screen
- Voice Synthesis
- Italian
- Download Data
- LAN
- Power Supply 220 V
- 12Vcc - 4A
- Power supply
- 12Vcc Included
- Operating environment
- Temperature range from -30 ° C to + 60 ° C
- Opening door
- Relay (NO Clean Contact)
- Outgoing alarm
- Supported (Italian language)
- Wiegand Communication
- 1 exit
- Dimensions
- 273mm x 144mm x 25mm
- Optional accessories
- Supports 110cm, 55cm, 10cm
- Fixing brackets to choose from when ordering
- Wall / Tubular
- Umidity
- 5 - 90 %
