iAccess ScanPASS
Access Control
Prezzo: €949.00
06IA0SP28
Available in 10 days
What is iAccess ScanPASS?
ScanPASS® is a system for Access Control and people counting inside environments with a high flow of people.
Suitable only for indoor environments, supervision is carried out through a system made up of optical sensors that record people entering and exiting.
ScanPASS® is an Advanced Control module that interacts with the sensors via data connection and the included software, allowing:
- Detection of the number of people inside closed environments
- Waiting signal at the entrance when the number of people inside the premises is equal to the set threshold.
In addition, a visual traffic light indicates the occupancy status or access availability of the premises.
Ideal for measuring how many people can enter a room or stay inside a specific area
Installing and configuring ScanPASS
The ScanPASS Access Control system consists of
- infrared sensors
- control unit
and the warning signal can be positioned near building entrances, while each element can be connected to the central administration software.
Installation and configuration are simple and fast. You only need to identify the ideal positions for placing the sensors that detect people passing through and connect the control unit to the data network.
Where can ScanPASS be installed?
The ScanPASS Access Control system can be widely used in:
- Conference centres
- Shops
- Banks
- Libraries
- Shopping centres
- Restaurants
- Public venues
- Museums
Essential specifications
- Input power supply: 220Vac
- Control unit dimensions: 400 x 300 x 80 mm
- Column dimensions: 60 x 60 x 500 mm
- Junction box for INPUT / OUTPUT connection
- The photocell pairs must be installed at a minimum distance of at least 40/50cm
- No. 1 LAN RJ45 10/100
- No. 2 Digital Input
- No. 2 Digital Output (NO /NC)
- Operating temperature: from 0°C to 45 °C
- 2-year warranty
- Humidity < 85%

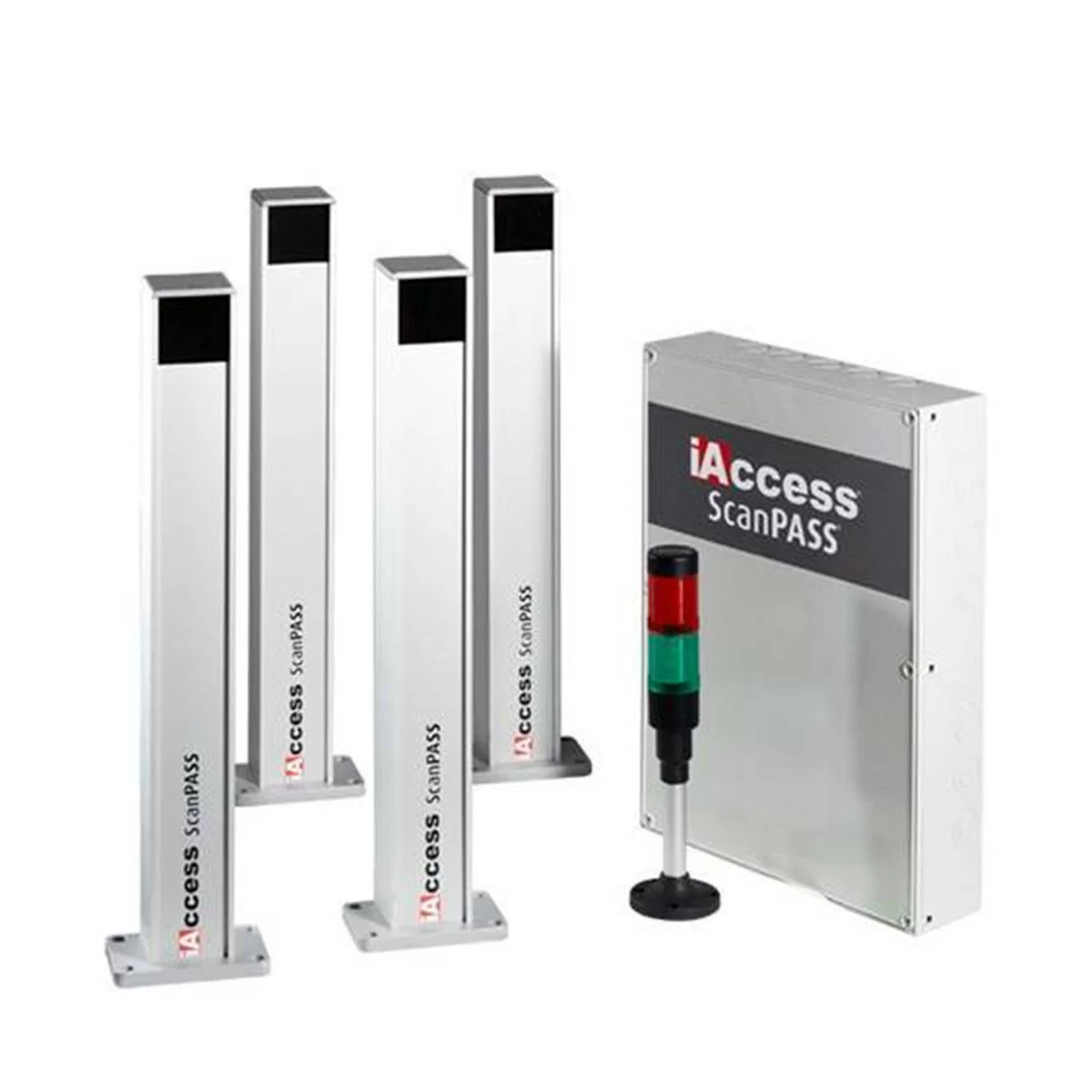

Standard equipment
- 2 pairs of photocells to detect people passing through
- 1 control unit connectable to the data network via LAN cable
- 1 software licence to be installed on Windows OS
- 1 traffic light signal
ScanPASS Software
Thanks to the included software, it is possible to monitor people passing through in real time via PC and receive visual and acoustic alerts in case of overcrowding
Download the ScanPASS Software- Power Supply 220 V
- 220Vac
- Dimensions
- Centralina 400x300x80 mm.
- Dimensions
- 60x60x500 mm.
- Temperatura operativa
- da 0°C a 45 °C
